Product No.:
AR463051H
Shipping time:
5-8 days, if in stock 5-8 days, if in stock (abroad may vary)
Weight:
0.4 kg per piece
Our standard price 89,34 EUR
Your price 62,54 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

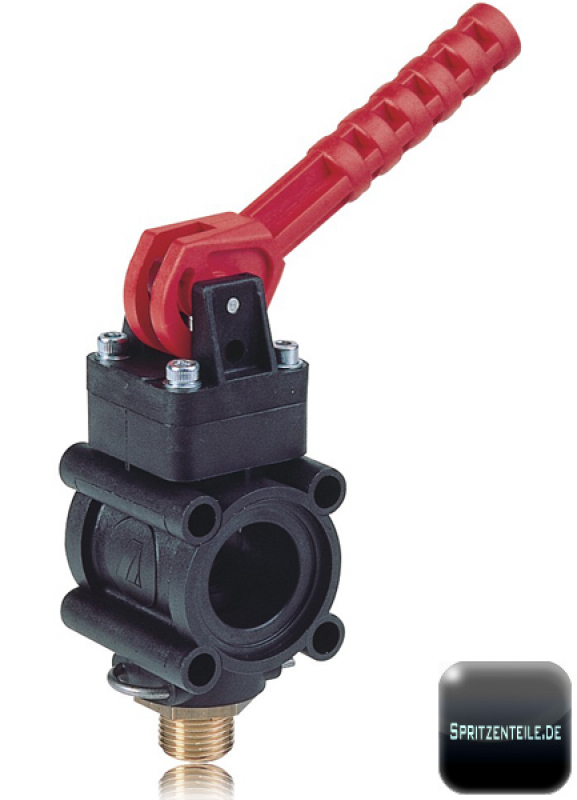

Manually controlled boom section valve from Arag series 463
  • Fibreglass-reinforced Nylon body
  • Internal parts in Delrin® an AISI 303 stainless steel
  • Gaskets made of Viton®
  • Max pressure 40 bar
  • Flow rate 35 l/min
  • Not suitable for connection to metering maifolds
  • The valve is not pre-equipped for mounting on a return manifold

Documents
Spare parts list Arag Manually controlled boom section valve  (787.31 KB)
