Product No.:
AR45515106
Shipping time:
5-8 days, if in stock 5-8 days, if in stock (abroad may vary)
Weight:
1 kg per piece
Our standard price 65,01 EUR
Your price from 45,51 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

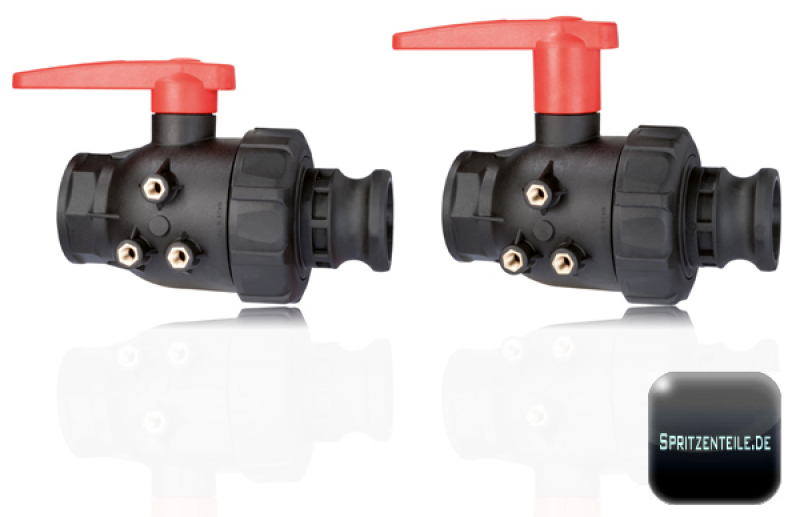

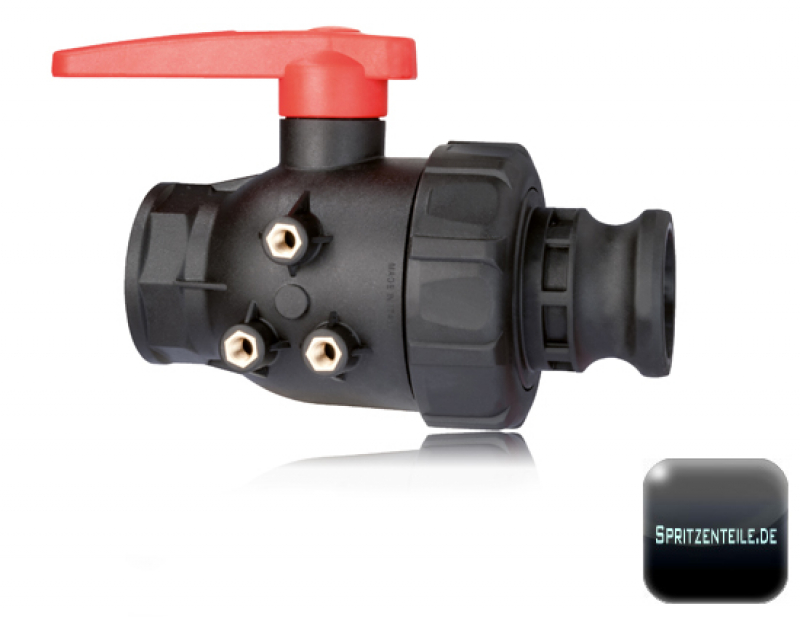

Manual 2-way ball valve one side with Camlock Adapter from Arag reinforced polypropylene with ball in PP available.
  • 1/4 turn of handle from shutoff to full flow
  • Available with lifted arm for mounting on panel (variant A)
  • Maximum operating pressure 10 bar / 150 PSI
  • Ball seat TEFLON ®
  • EPDM seals
  • Cylindric threaded connection 1½" or 2" female available
  • Camlock-Adapter 1½" or 2" available
  • Screws and bolts made ??of stainless steel
  • Two threaded drilling for mounting with screws
  • By turning the clamping nuts and loosening of the handle, the ball valve can be completely disassembled
  • Spare parts on request
Please select thread size.
Documents
Spare parts list Arag Ball valve  (350.05 KB)
