Arag Ball Valve 3-way series 455 T-fork-coupling

Product No.:: AR45524436
Shipping time:: 1 Week (abroad may vary)
Stock:: pieces
Weight:: 1 kg per piece

Construction:

Our standard price 81,24 EUR
Your price from 56,87 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

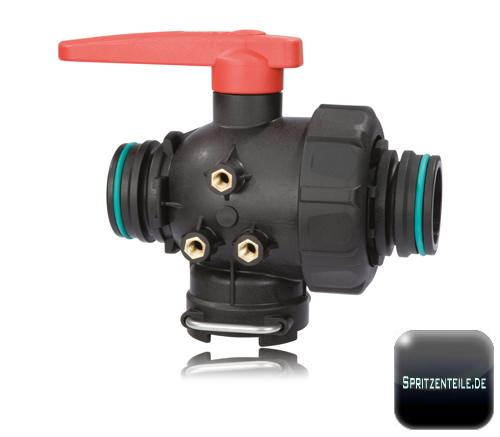

Manual 3-way ball valve from Arag with T6 and T7 fork coupling in male / female connection, made of reinforced polypropylene, with ball in PP.

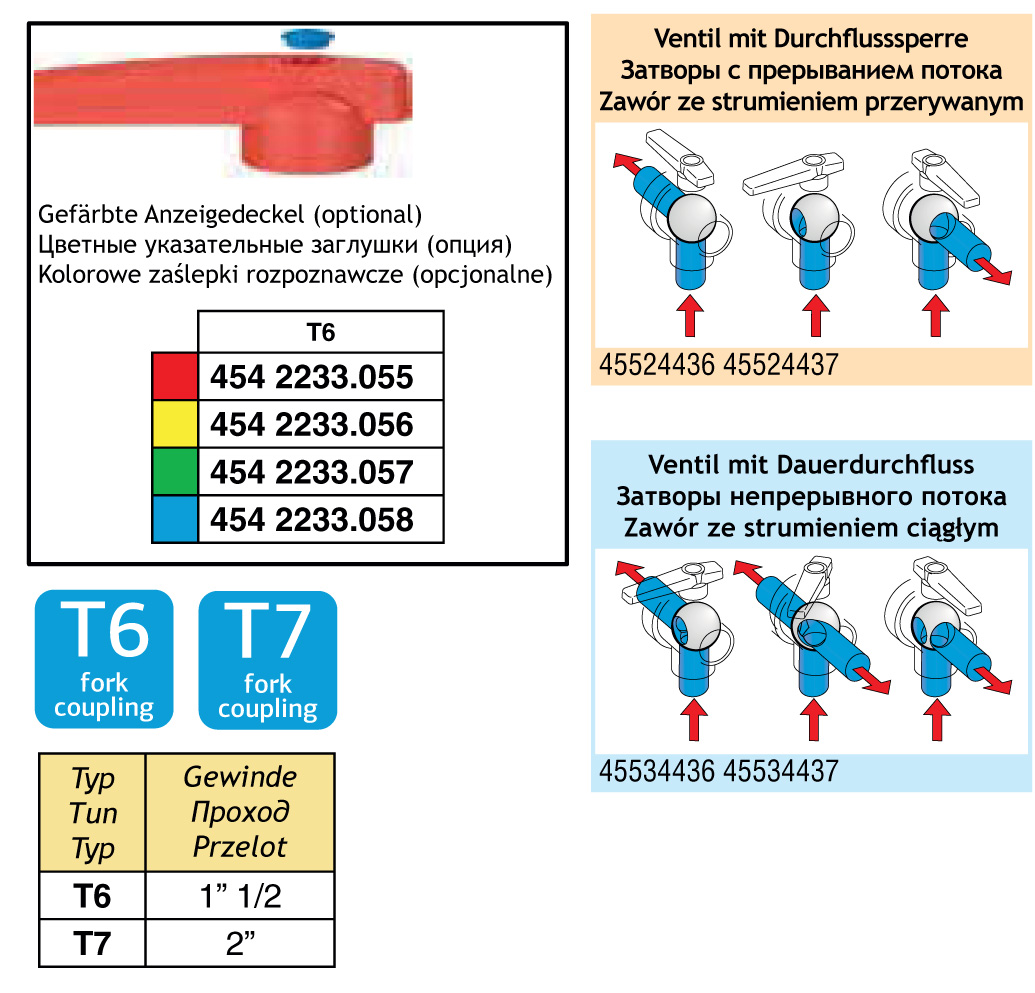

1/4 turn of handle from shutoff to full flow and 180° turn for changing the direction of flow
Valve with permanent flow rate or flow barrier available

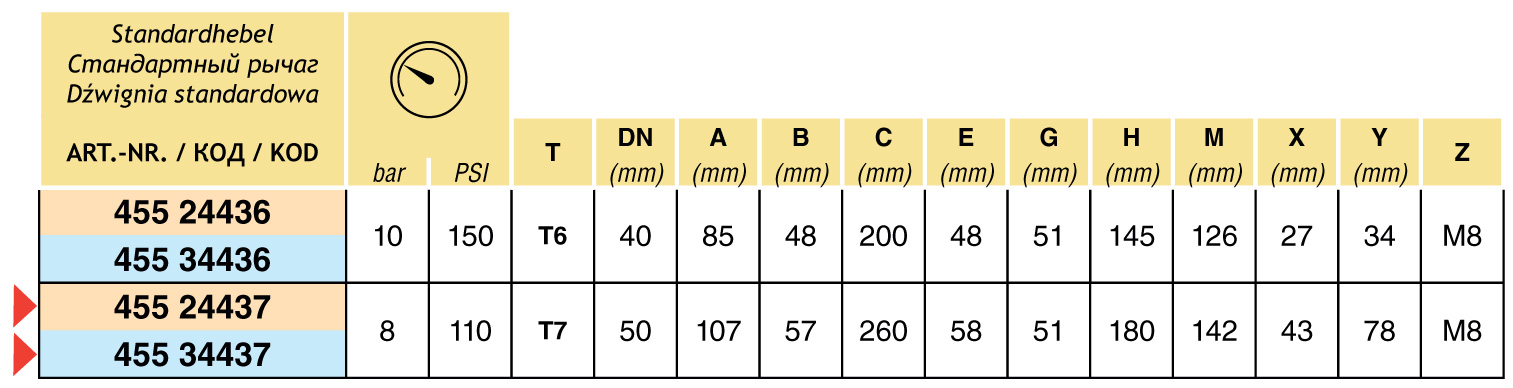

Maximum operating pressure 10 bar / 150 PSI or 8 bar / 110 PSI
Ball seat TEFLON ®
EPDM seals
T-fork connection T6 = 1 ½" and T7 = 2"
Screws and bolts made of stainless steel
By turning the clamping nuts and loosening of the handle, the ball valve can be completely disassembled
Spare parts on request

Please select variant of flow and T-connection size.

Documents

Spare parts list Arag Ball valve (350.18 KB)

Spare parts list Arag Ball valve (350.11 KB)
