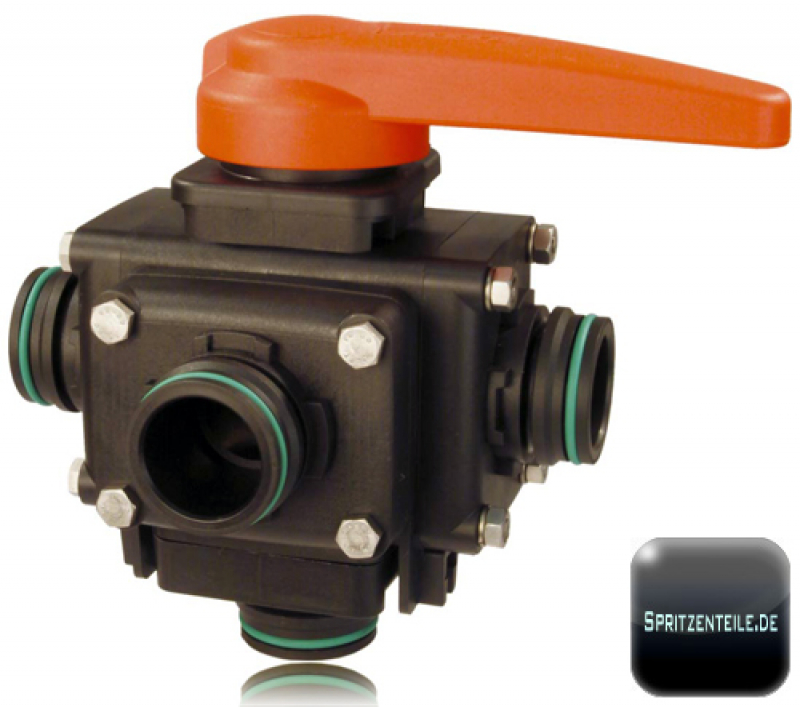

Manual 5-way ball valve from Arag with T-fork-coupling and bottom / lateral connection, made of reinforced polypropylene, with ball in AISI316, UHMW-PE or PP available.

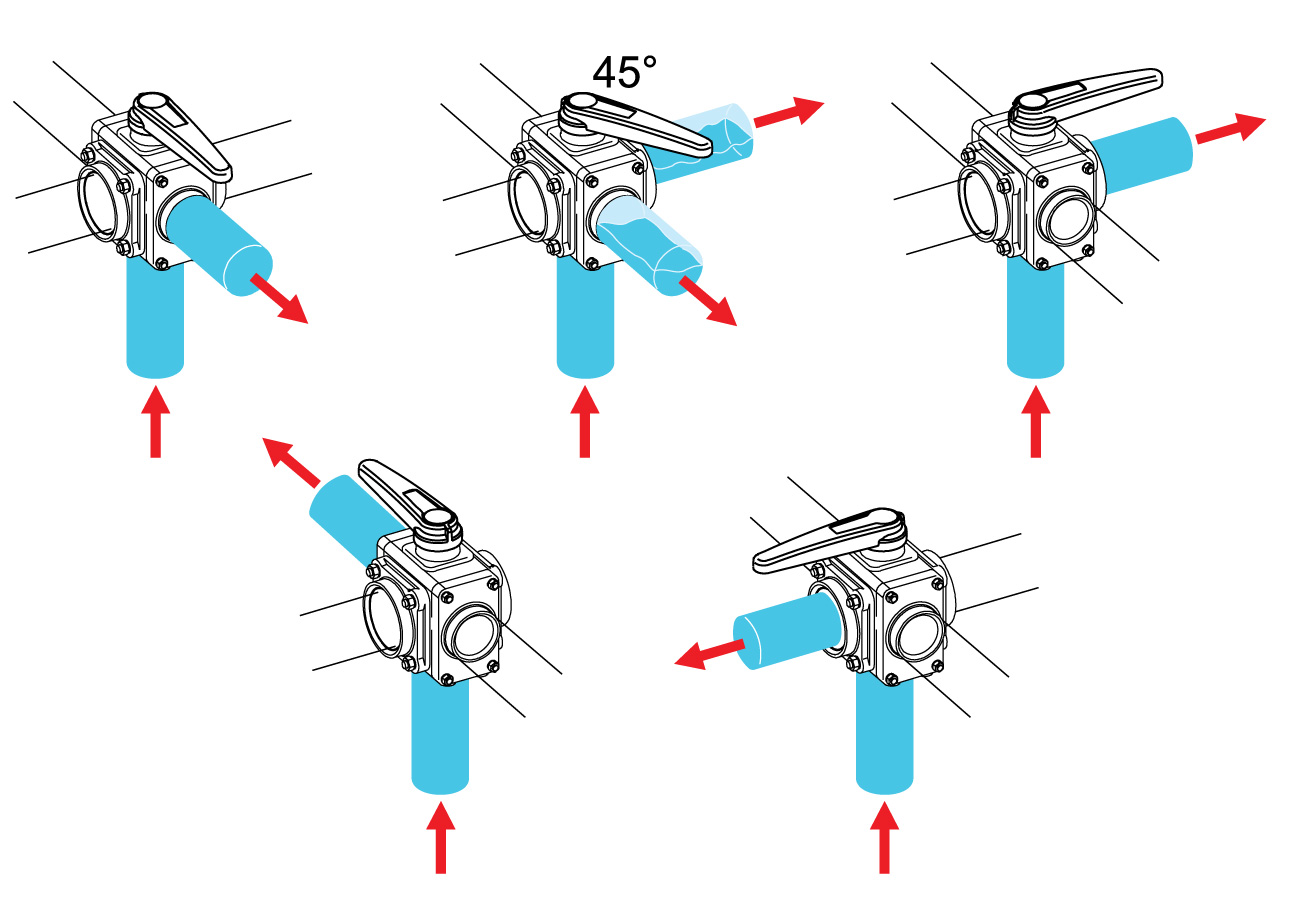

360° turn of handle for changing the direction of flow
Both sides with clamping nuts for readjustment

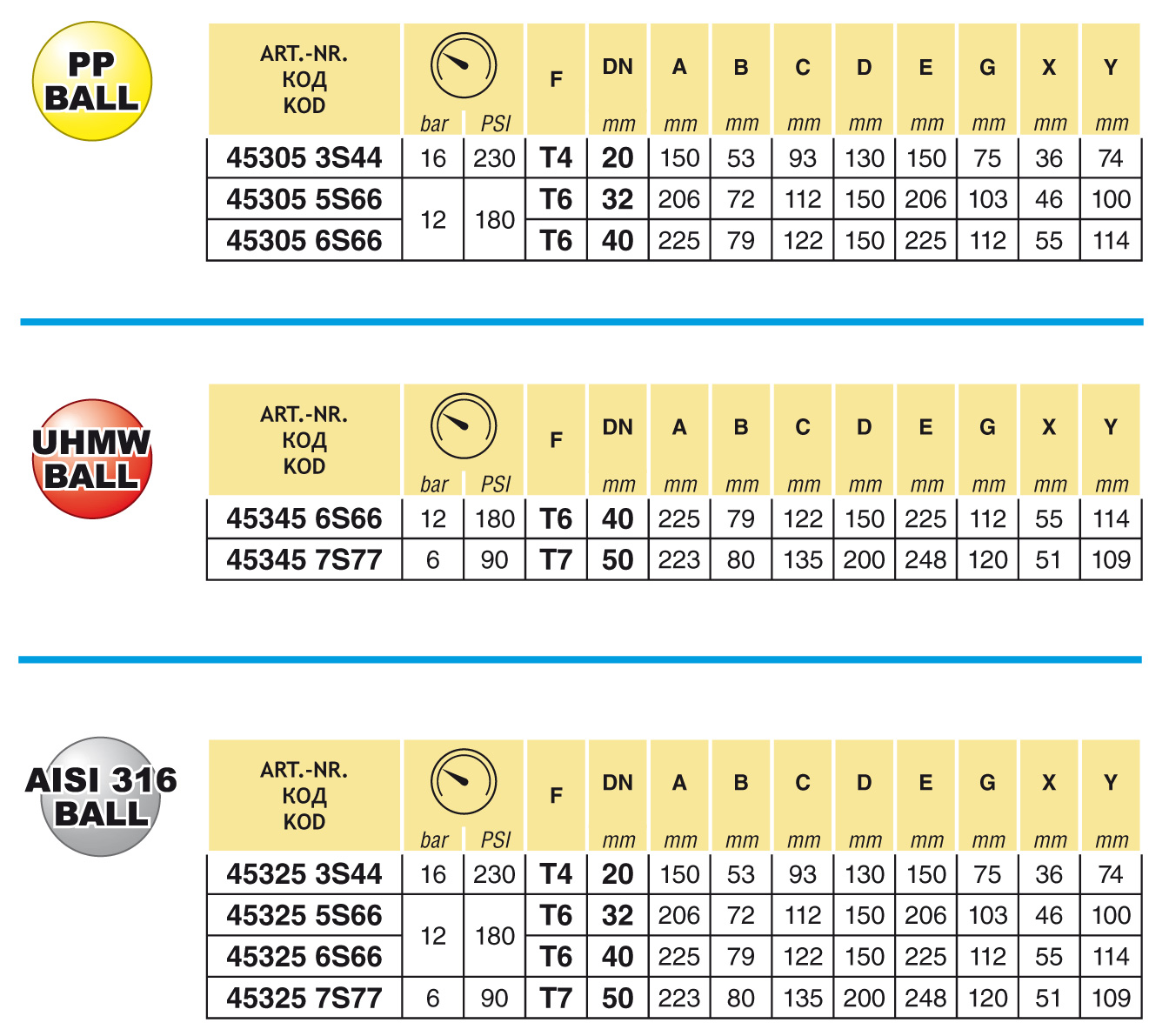

Maximum operating pressure
16 bar / 230 PSI at T4
12 bar / 180 PSI at T6
6 bar / 90 PSI at T7
Ball seat TEFLON ®
EPDM seals at ball PP
Viton® seals at ball AISI316 and UHMW-PE

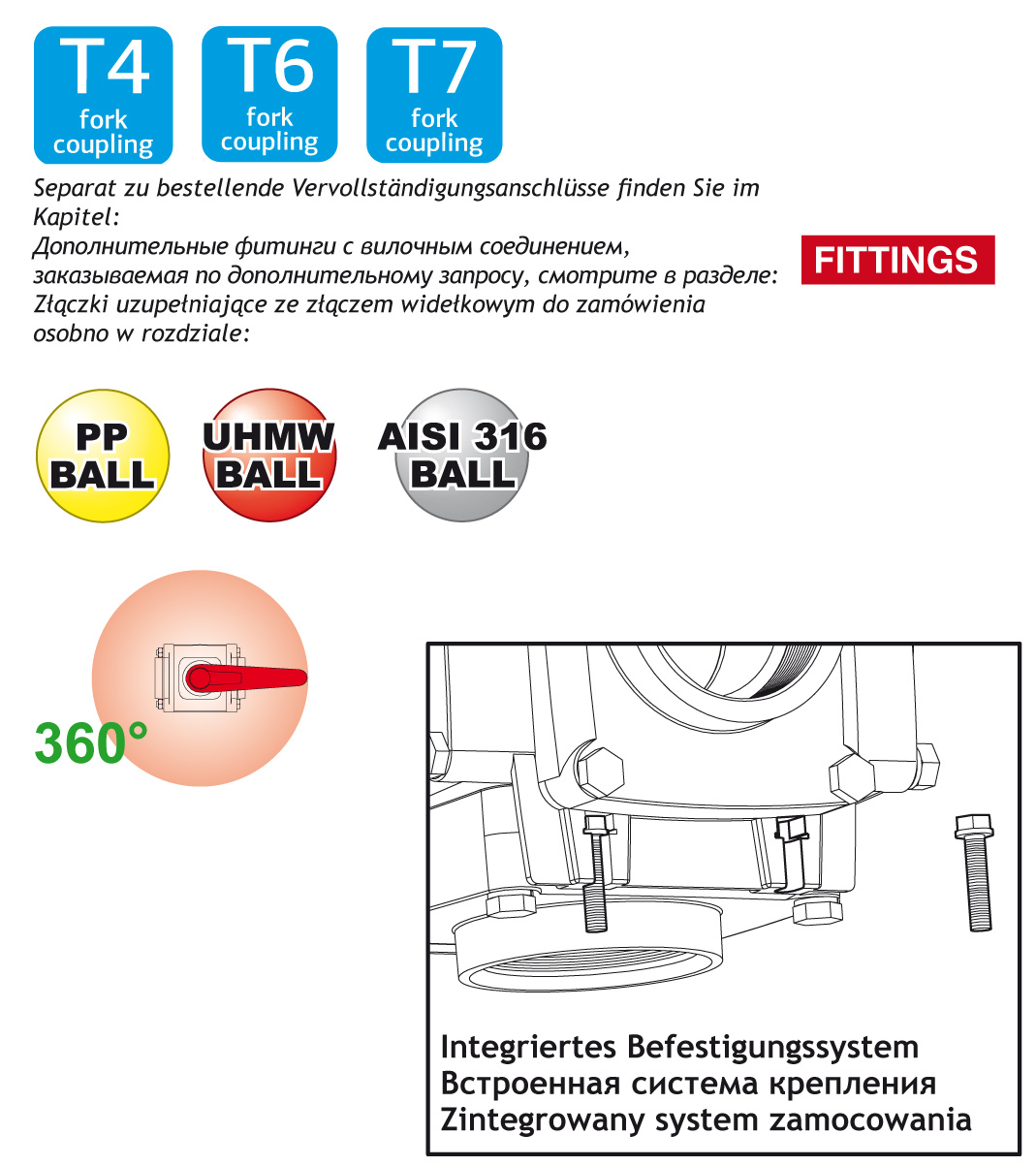

T-fork connection T4, T6 and T7 available
Screws and bolts made of stainless steel
By turning the clamping nuts and loosening of the handle, the ball valve can be completely disassembled
