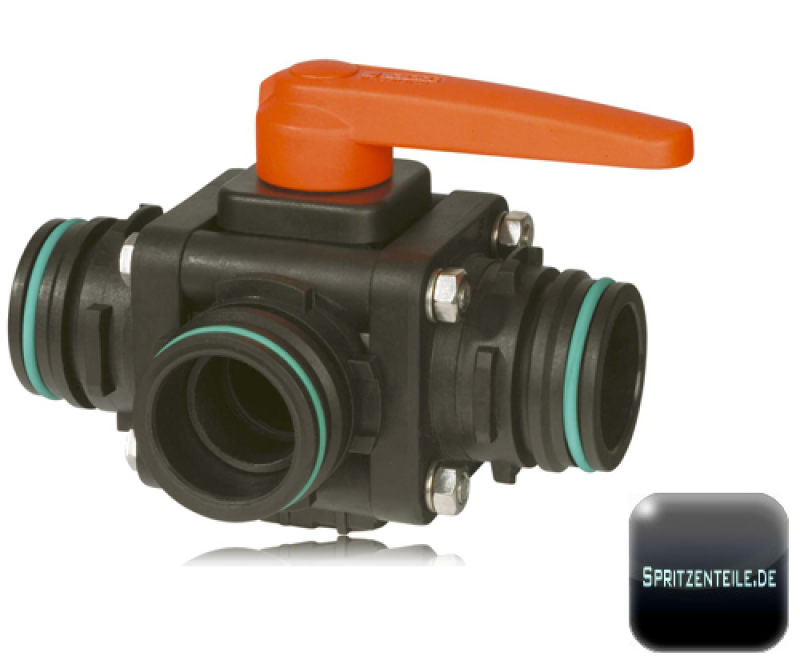

Arag Ball Valve 3-way series 453 lateral T-fork-coupling

Product No.:: AR453014S55
Shipping time:: 1 Week (abroad may vary)
Stock:: pieces
Weight:: 1 kg per piece

Connection Type:

Our standard price 118,66 EUR
Your price from 83,06 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

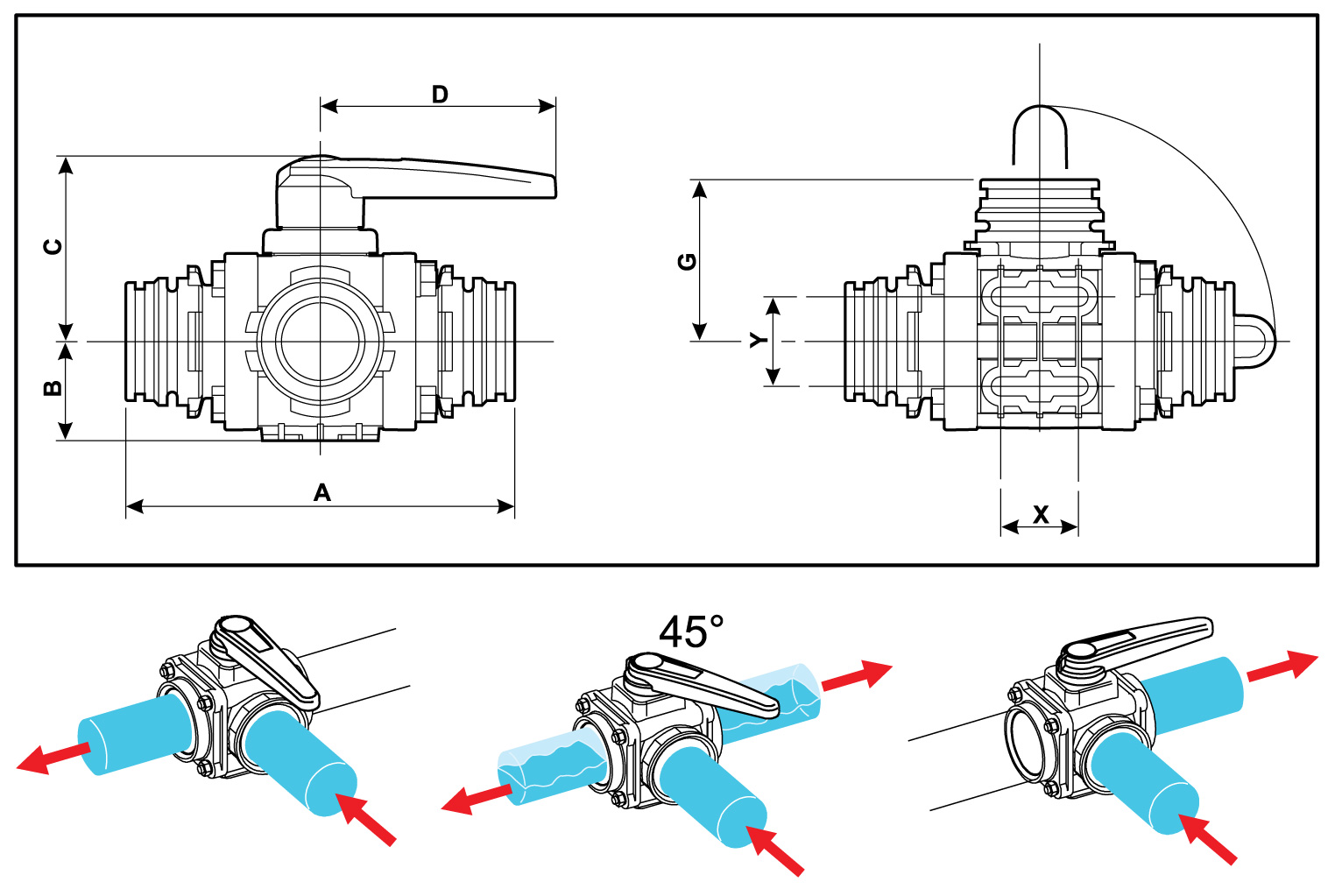

Arag Manual 3-way ball valve with T-fork-coupling and lateral connection, made of reinforced polypropylene with ball in PP or UHMW PE available.

1/4 turn of handle from shutoff to full flow
Both sides with tie rods for readjustment

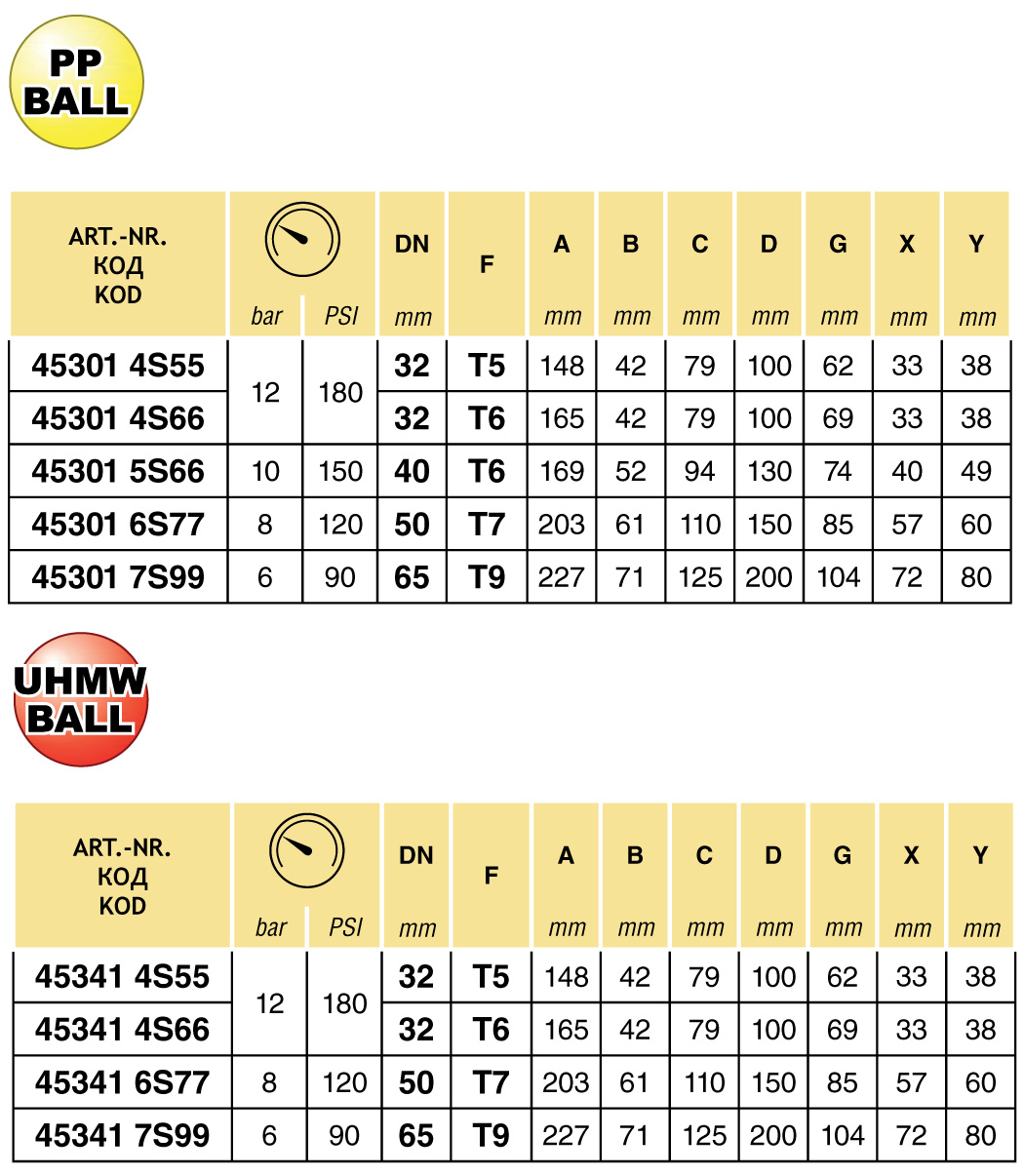

Maximum operating pressure
- 12 bar / 180 PSI at T5 and T6 DN 32 mm
- 10 bar / 150 PSI at T6 DN 40 mm
- 8 bar / 110 PSI at T7
- 6 bar / 90 PSI at T9
Ball seat TEFLON ®
EPDM seals at ball PP
T-fork connection T5, T6, T7 or T9 available
Screws and bolts made of stainless steel
By turning the clamping nuts and loosening of the handle, the ball valve can be completely disassembled
Spare parts on request

Please select material of ball and coupling size.

Documents

Spare parts list Arag Ball valve (1.24 MB)
