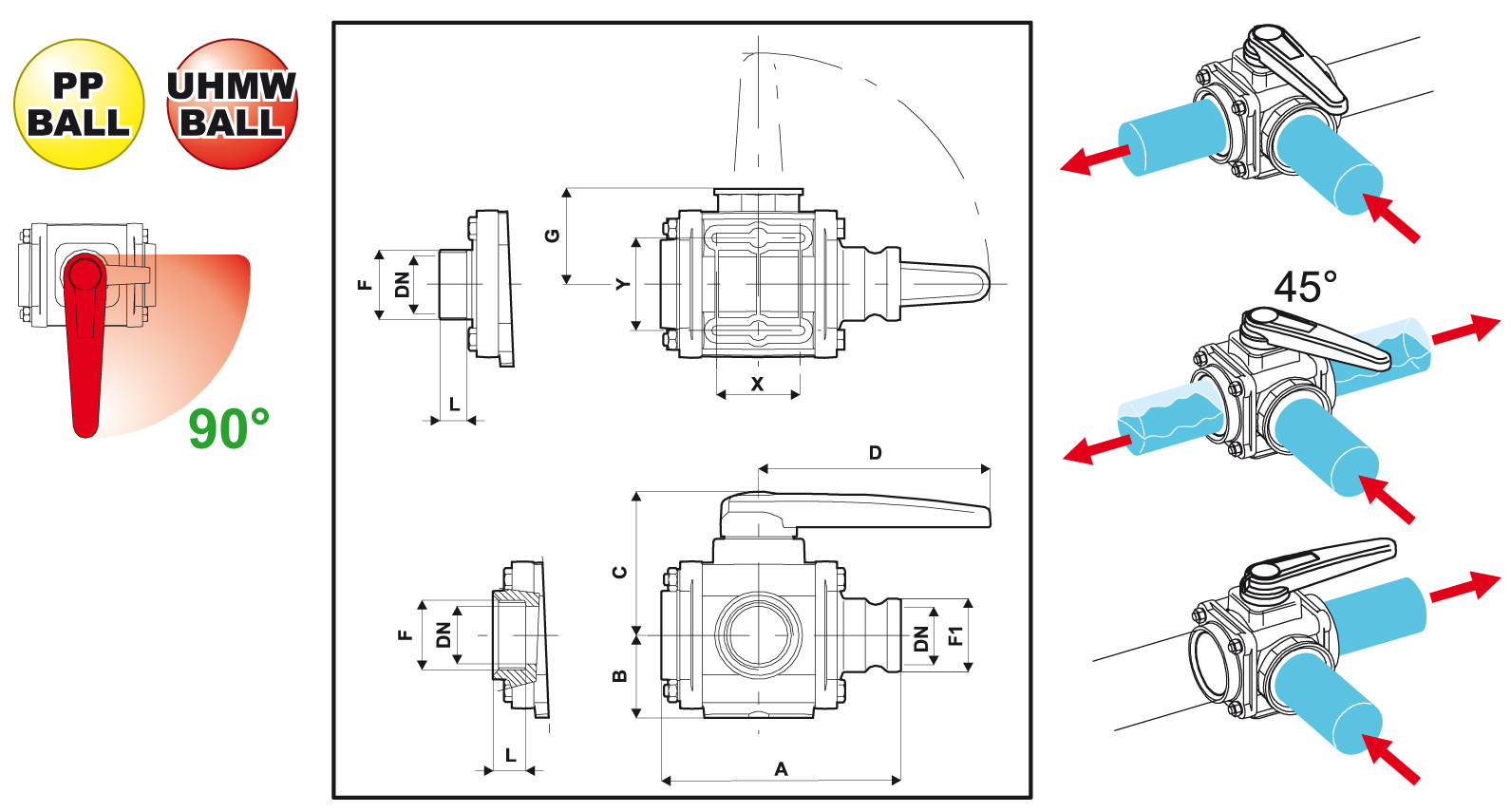

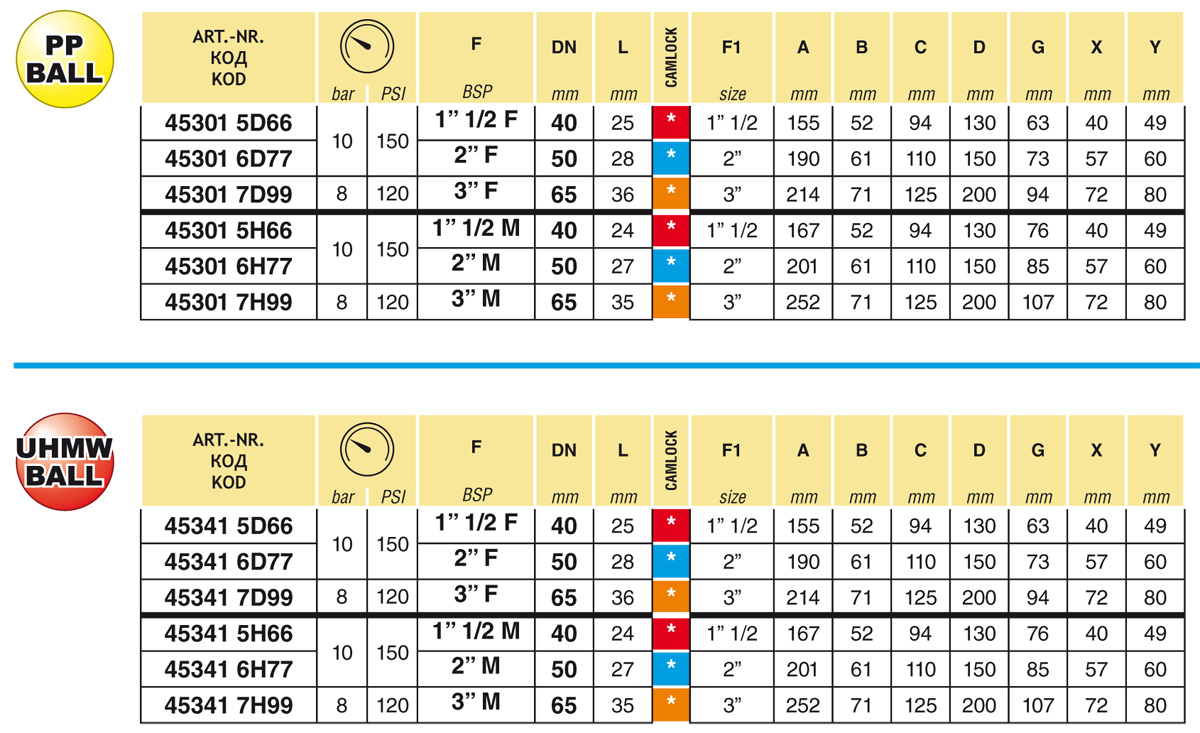

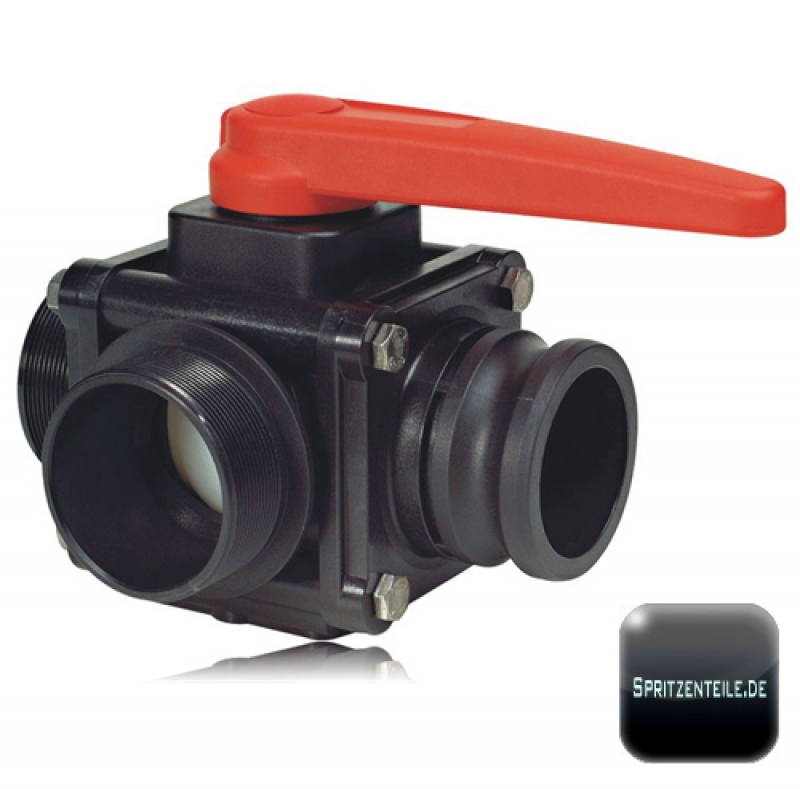

Arag 3-way ball valve with side connection, one side with Camlock Adapter. Ball valve made of reinforced polypropylene, ball available in UHMW-PE or PP.
Changing the flow direction with ¼ turn of handle
Both sides with clamping nuts for readjustment
Maximum operating pressure 10 bar | 150 PSI
Ball seat TEFLON ®
EPDM seals at ball PP
Viton® seals at ball UHMW-PE
BSPT threaded connection 1½" or 2" male available
Camlock Adapter 1½" or 2" available
Screws and bolts made of stainless steel
Integrated mounting system directly at the valve body with hexagon screws M8
By turning the clamping nuts and loosening of the handle, the ball valve can be completely disassembled
