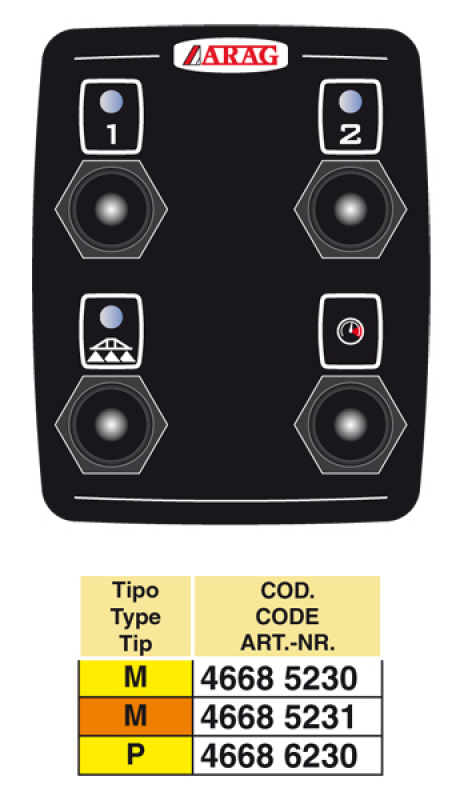

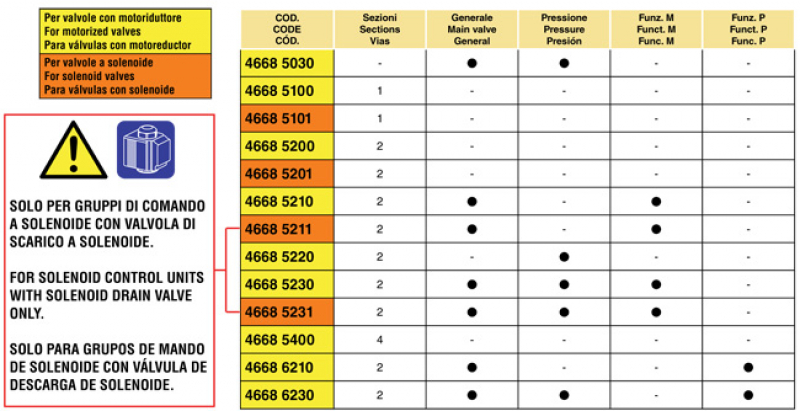

The series 4668 complete the range of Arag control boxes to meet the requirements for reduced overall sizes. The 4668 control boxes are reliable and cost-effective. Bayonet mounting system. Available in a wide range of versions.
General Features
2 outlet sections
Possibility of main valve switch
Possibility of pressure regulating switch
Big size switches protected with rubber-caps

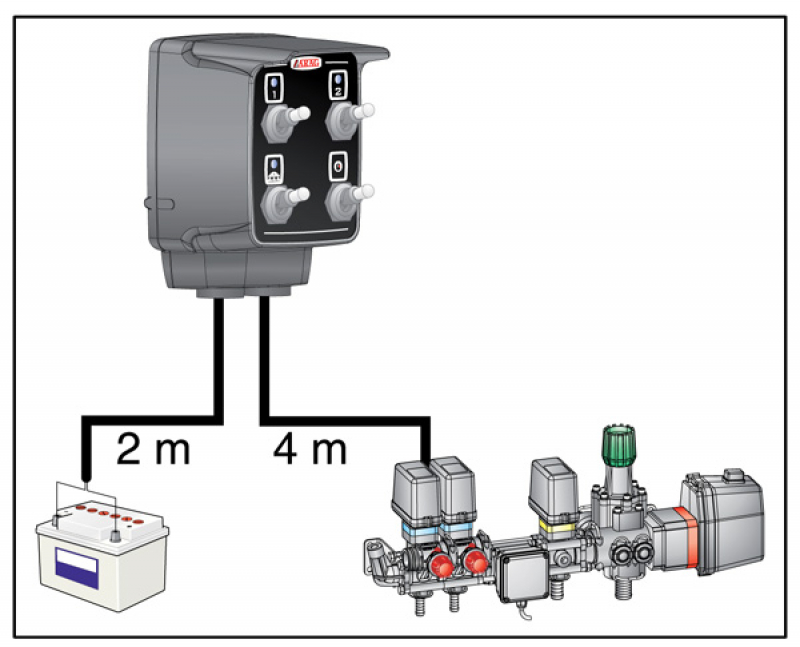

4 m connecting cable and 2 m cable to power supply
Power supply 12 Vdc
High brightness leds
Self-resetting main saftey fuse
Water proof seals

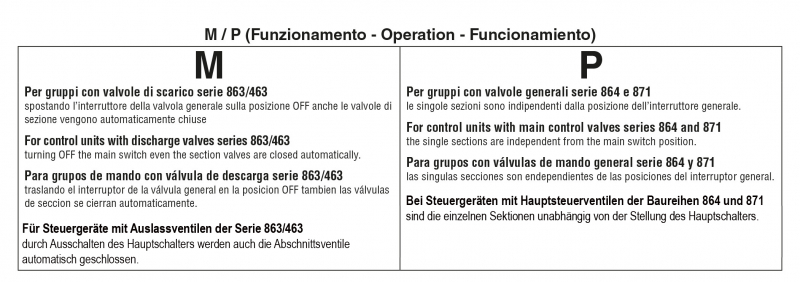

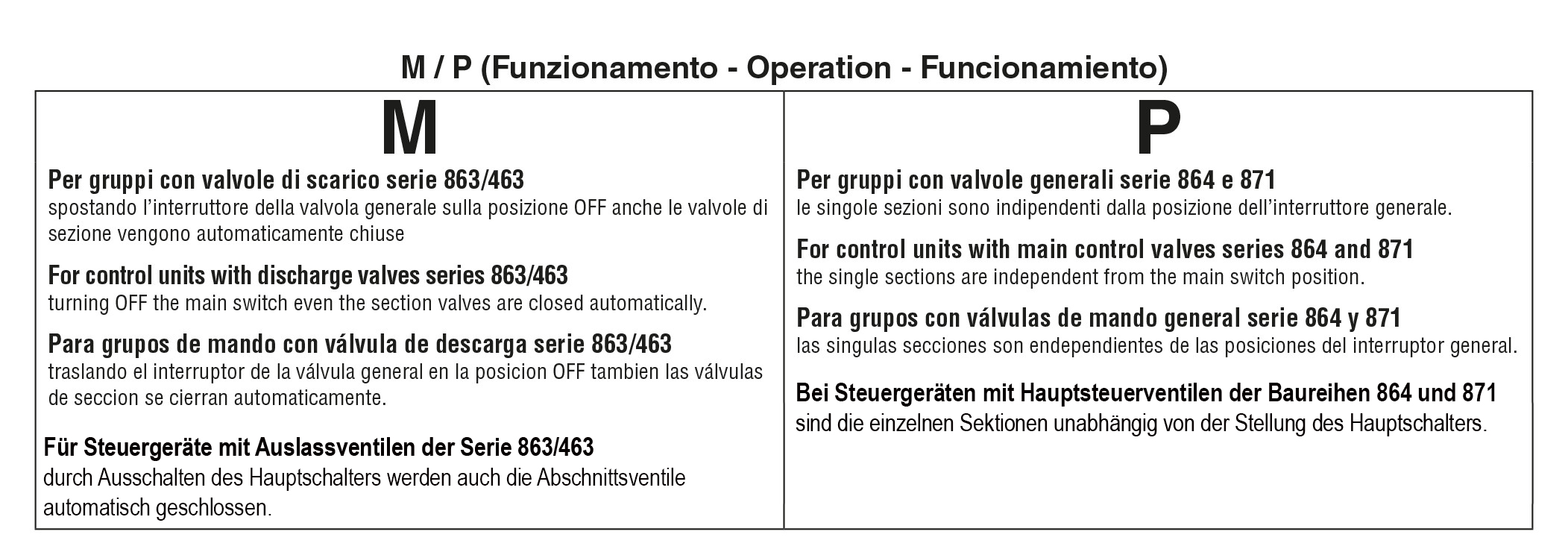

Possibility of M or P function
M for control units with discharge valves serie 463 / new serie 863
P for control units with main control valves series 464 and 471 / new serie 864 an 871
