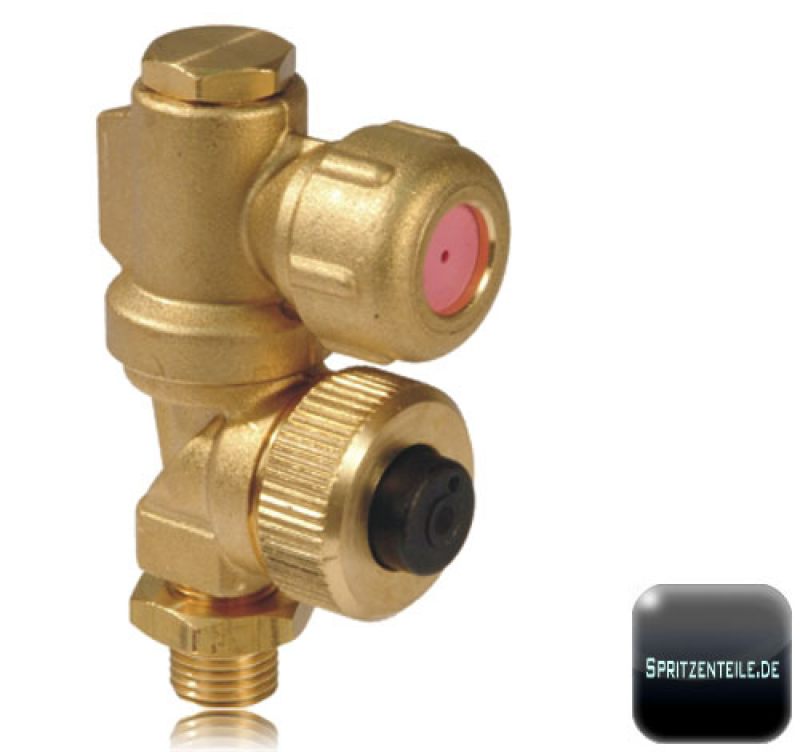

Arag Diaphragm Nozzle Holder for Spraying Units

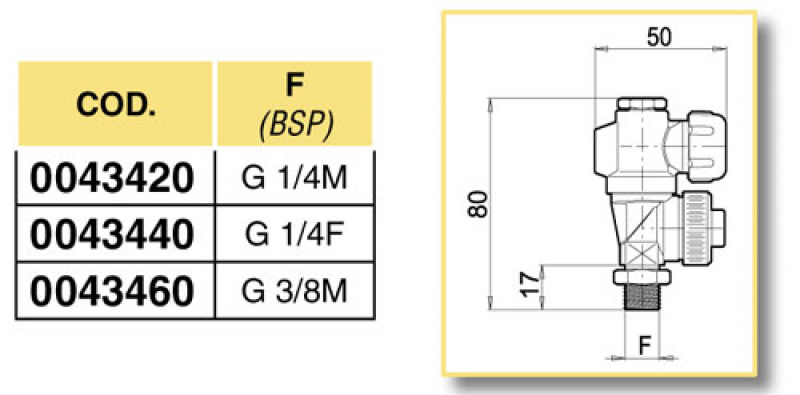

Facile nozzle holder made of brass manufactured by Arag-Italia. For the pressure range up to 50 bar. The nozzle holder gets installed with a cap nut. Lechler ID and IT or ITR as well as ATR nozzles can be used. The nozzle holder is avaible in two different thread sizes. This nozzle holder can be shut off and has a membrane valve as a drip stop.

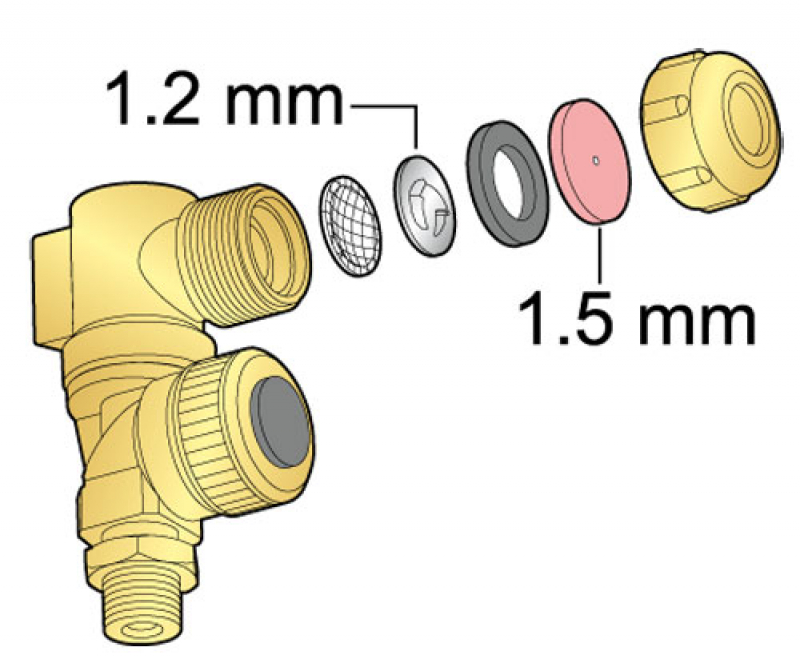

Standard delivery consists of:
Standard delivery consists of:
- filters
- twist body with opening ø 1.2 mm
- seal ring
- ceramic plate Ø 18 mm with bore ø 1.5 mm and
- nut
