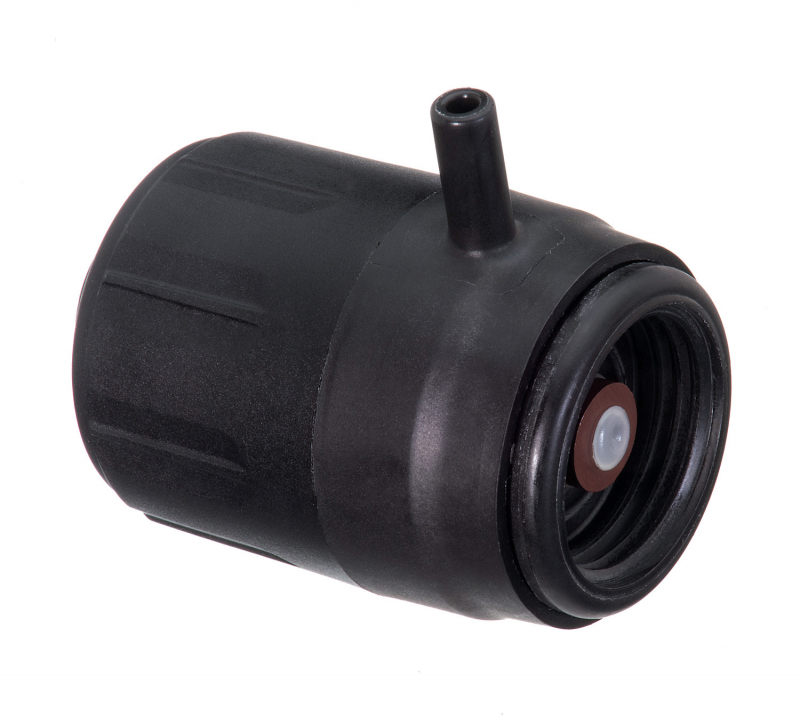

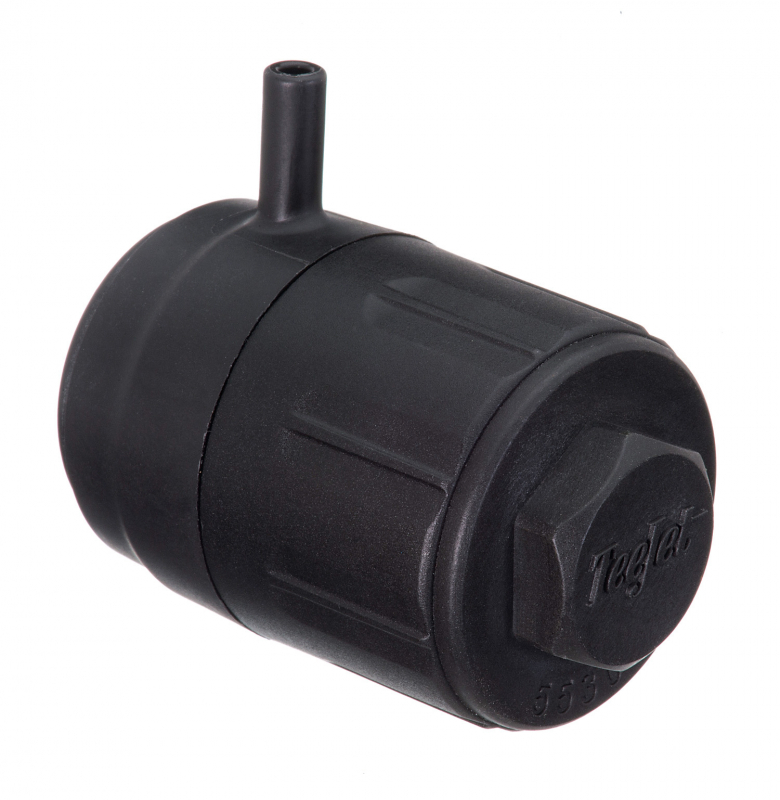

55300 ChemSaver Air Shutoff Valve is designed as a pneumatic valve for use on Quick TeeJet® nozzle assemblies. Air pressure is used to open the valve and a spring is used to close the valve.
Wetted materials include polypropylene, Kynar® and FKM.
3.1 bar minimum air pressure.
10 bar maximum liquid pressure.
Air inlet fitting swivels around body and accepts 6 mm push-to-connect fittings for fast installation.
Valve is normally closed.
Very low air consumption per cycle reduces load on air supply system.
