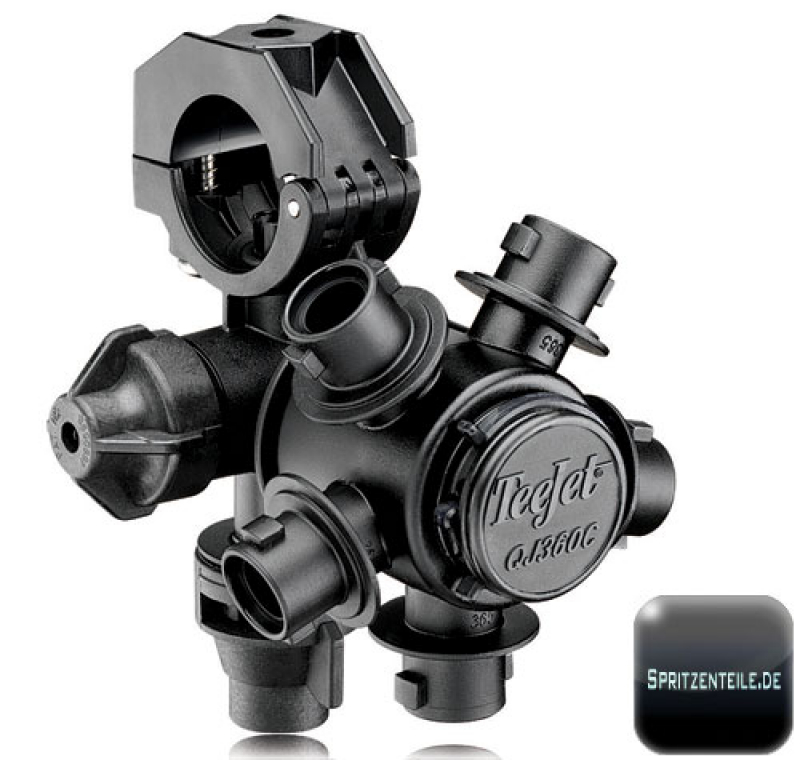

TeeJet Nozzle holder 5 fold QJ365F

Name: TeeJet Nozzle holder 5 fold QJ365F
SKU: SPQJ365F-1-NYB
Price: 34.71 EUR
Availability: InStock

Our standard price 49,59 EUR
Your price 34,71 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Description

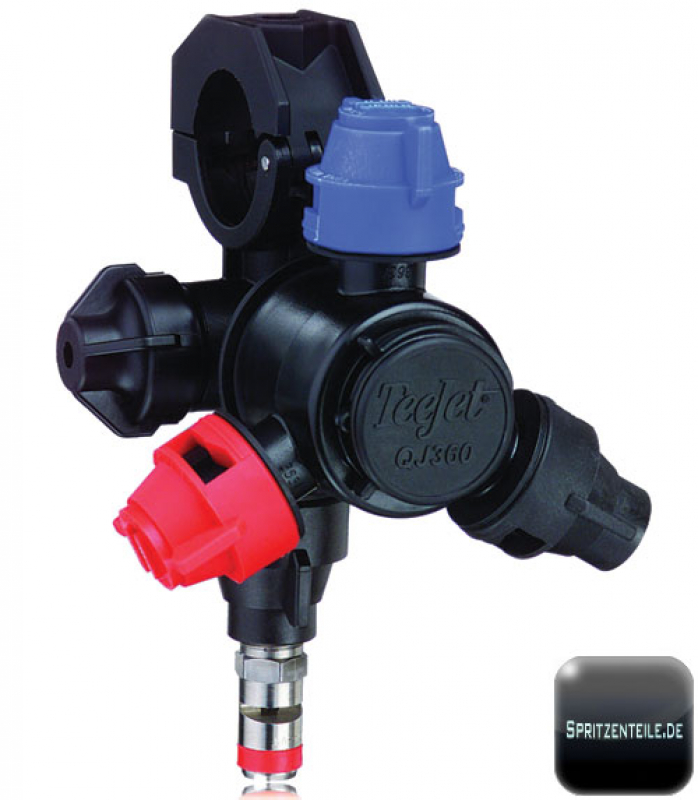

Multiple Nozzle Bodies with Fertilizer Outlets for Wet Booms made from the manufacturer TeeJet.

Single fertilizer nozzle outlet with shutoff cap and either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing.
Positive shutoff between each position.
Automatic self-alignment with flat fan spray patterns.
Flow rate: 2.25 GPM (8.5 l/min) with 5 PSI (0.34 bar) pressure drop through turret and 3.4 GPM (12.9 l/min) through fertilizer outlet.
Flow rate: 3.18 GPM (12.0 l/min) with 10 PSI (0.69 bar) pressure drop through turret and 4.8 GPM (18.2 l/min) through fertilizer outlet.
Maximum pressure of 300 PSI (20 bar).
Available in 1" pipe connections and mounts with a 3/8" (9.5 mm) hole drilled in pipe or tubing.
Includes ChemSaver® diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 PSI (0.7 bar).
Standard O-rings and diaphragm made of EPDM and Buna with Viton® optional.
Also available with optional 56720 Air ChemSaver or 55280 e-ChemSaver® shutoff valves, see page 60 for additional information.
molded hex socket in the upper clamp for attaching to flat surfaces. Accepts 5/16"or M8 bolt.
Hinged upper clamp reduces assembly time and fits inside common boom channels.
