Features of the Agrotop TVI is a very fine dropping and sprayingfog-free plant protection with a high effectiveness. A leeway-poor, rough dripping spectrum can be used even in the smallest sizes. The new, compact injector nozzle is registered as 90% leeway-reducting. The yield has a range from 100 to 800 l/ha.
Technical data:

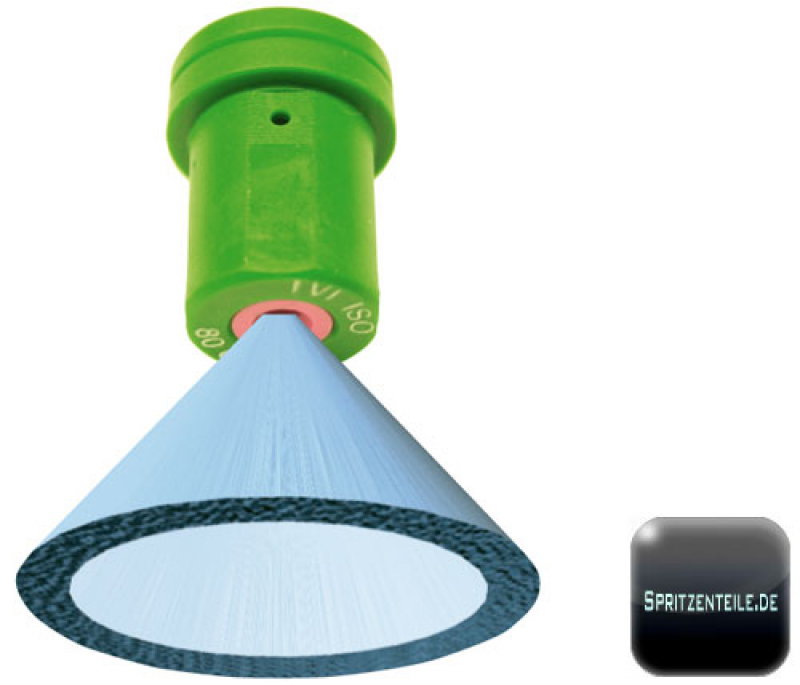

Air breathing hollow cone type nozzle with ceramic mouth piece and break-proof plastic injector with ceramic dosing wafer and eddy body
Toolless detachable for cleaning purposes
Very short building method
Dosing drilling freely accessible for cleaning purposes
Evenly, medium sized drippin
Spraying pressure range 5 -25 bar, optimal 12 - 25 bar
Spraying angle 80 degrees

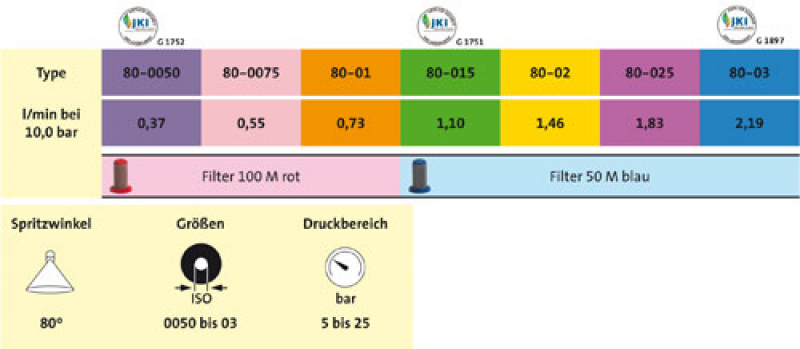

7 sizes -0050 to -03, ISO-colorcoded from 0,4 to 2,2 l/min at 10 bar
