Arag Electric proportional control valve T5-connection series 863

Product No.:
AR863T026
Shipping time:
if in stock 5-8 days if in stock 5-8 days (abroad may vary)
Weight:
0.7 kg per piece
Our standard price 356,25 EUR
Your price from 249,38 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

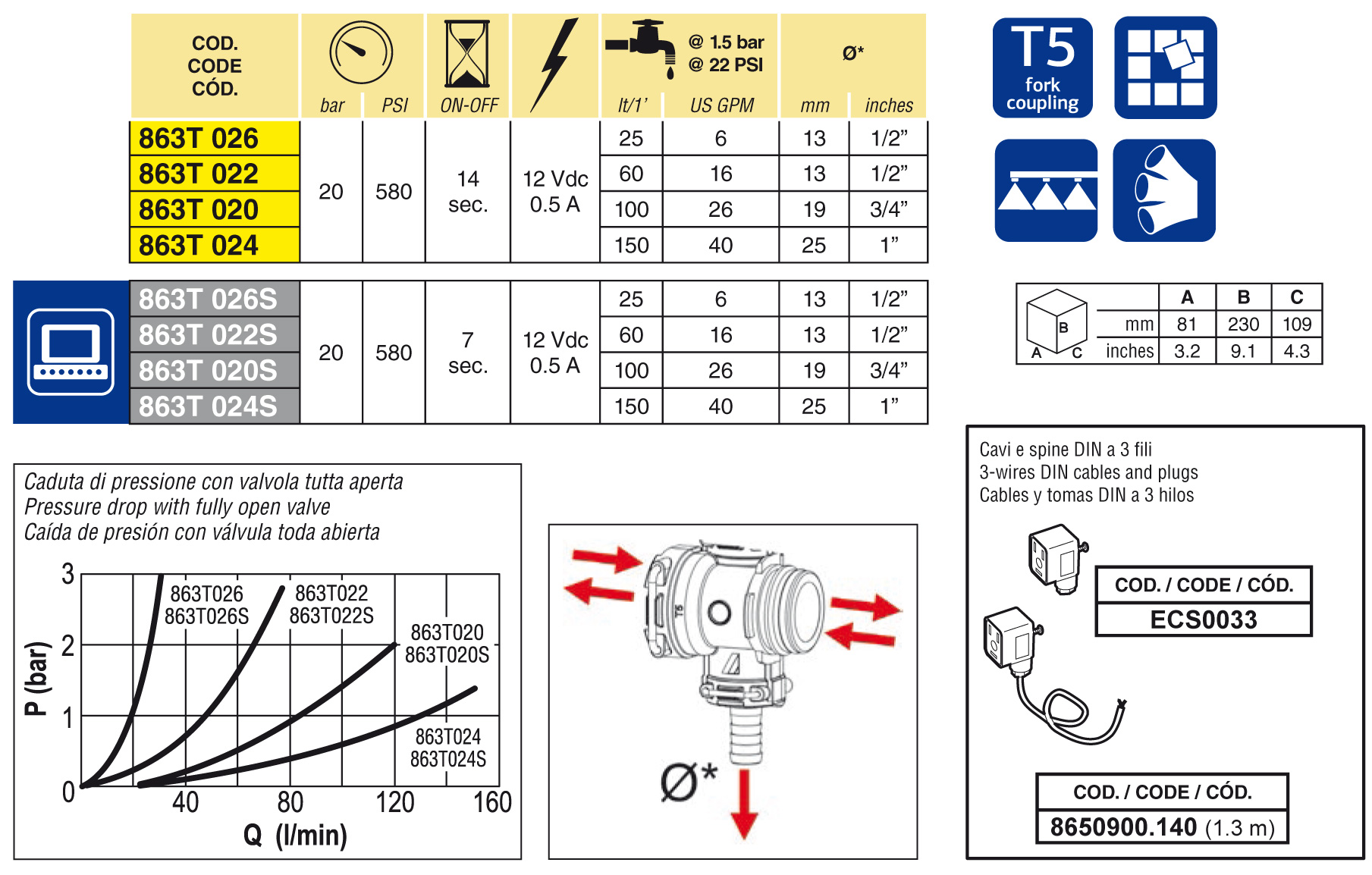

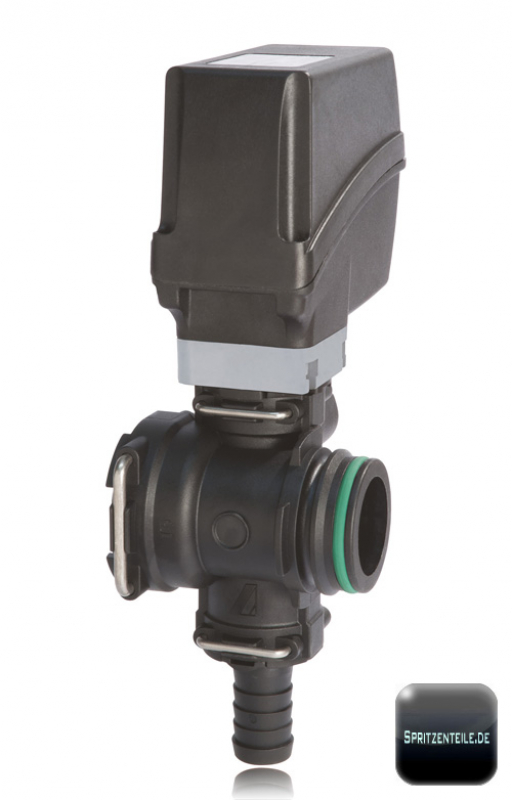

Arag Electric pressure control valve 863 T5-connection – specific valve for use with Bravo and Delta computers
  • Adjusts the flow in the control units in which treatments vary on proportion with engine rpm (DPM)
  • Fibreglass  reinforced Nylon body
  • Internal parts in Delrin® and AISI 303 stainless steel
  • Gaskets made of Viton®, absolutely liquid feritilizer resitant
  • The connection taken place with flange directly to an armature
  • Internal resettable fuse (disconnecting power for 20 seconds)
  • Closing time 7 or 14 seconds
  • Max. pressure 20 bar
  • Flow rate from 25 up to 150 litre/min
  • Accessories order separatly: 3-wires DIN cables and plug



Documents
Arag Electric proportional control valve T5-connection series 86  (867.04 KB)
