Arag Main control valve electric series 864

Product No.:
AR864050150-AR464402A90-AR464402A40
Shipping time:
if in stock 5-8 days if in stock 5-8 days (abroad may vary)
Weight:
2 kg per piece
Our standard price 1.352,31 EUR
Your price from 946,62 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Main control valve series 864

with adjustable max. pressure valve and optionally with electrically controlled proportional pressure control valve – T5 fork connection

  • Fibreglass-reinforced Nylon body
  • Internal parts in Delrin® and AISI 303 stainless steel
  • Gaskets made of Viton®
  • Low power consumption
  • Main valve opening/closing time is 1 second
  • Pressure range 10 or 20 bar
  • Flow rate 200 up to 260 liter / min

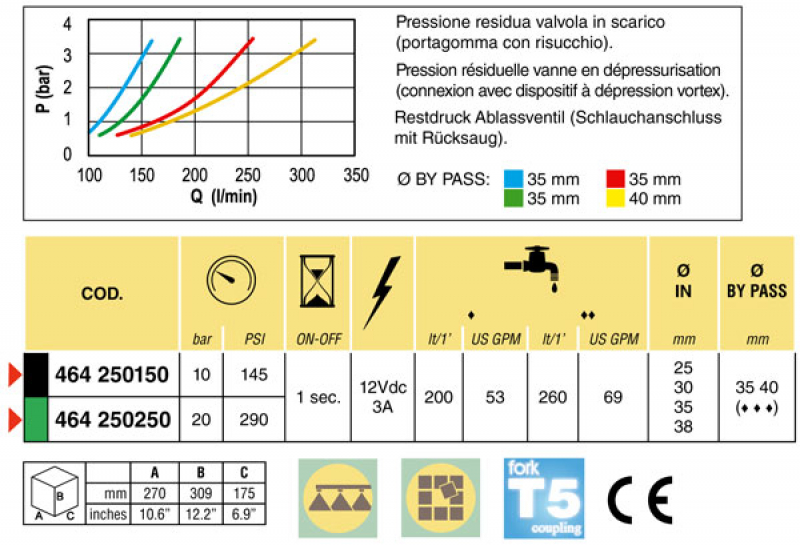

Technical data see also table in image. Select the pressure range.

Documents
Accessories for series 464  (345.25 KB) :

Spare part list Arag main control valve electric series 864  (1.21 MB)
