Arag Electric Diaphragm Pressure Relief Valve series 475

Product No.:
AR8750651
Shipping time:
5-8 days, if in stock 5-8 days, if in stock (abroad may vary)
Weight:
1 kg per piece
Our standard price 641,47 EUR
Your price 449,03 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

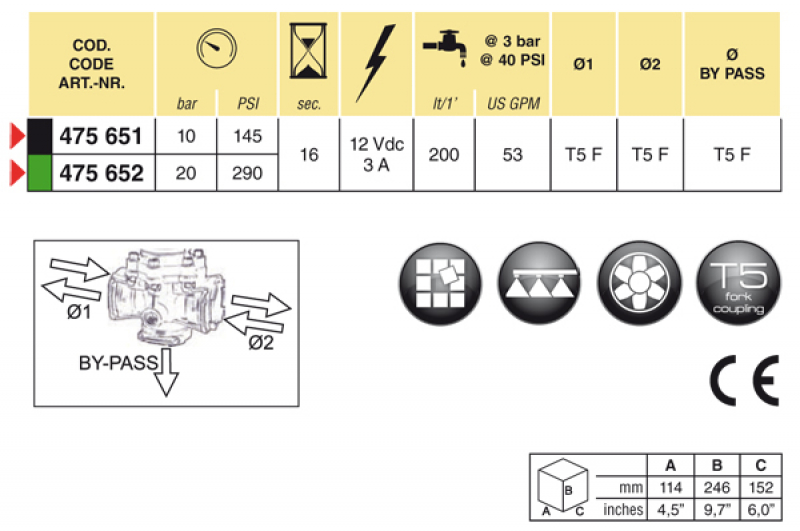

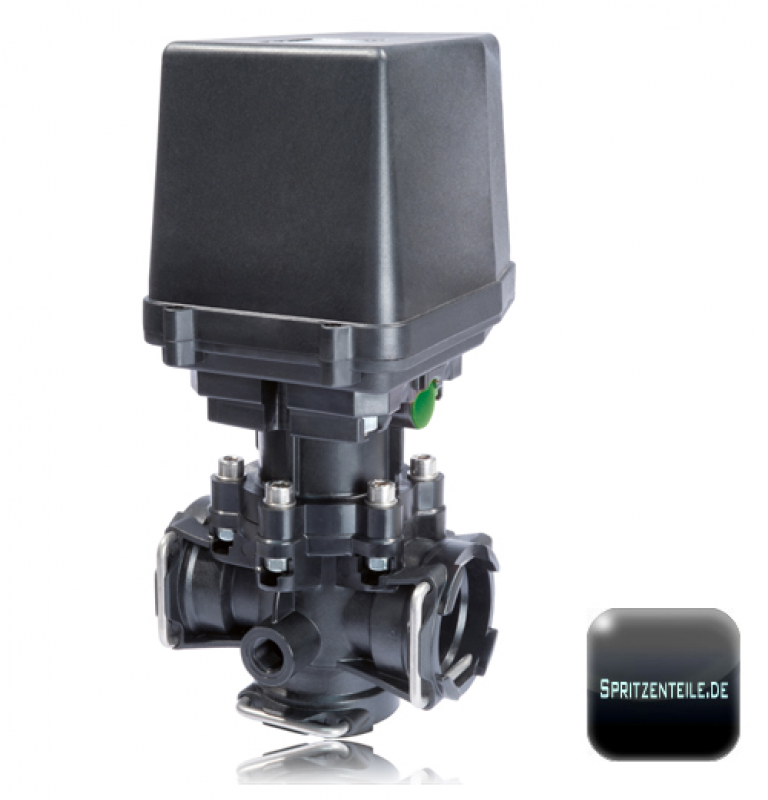

Electric Diaphragm Pressure relief control valve with T5-fork-coupling, series 475
  • By-passes the excess liquid and maintains constant line pressur
  • By-passT5-fork-coupling
  • Equipped with a separation diaphragm for enhanced control sensitivity
  • Compact sizes
  • Fibreglass-reinforced Nylon body
  • Internal parts in Delrin® and AISI 303 stainless steel
  • Gaskets made of Viton®
  • Maximum pressure 10 or 20 bar / 145 or 290 PSI
  • Maximum flow rate 200 l/min
  • Opening-/closing time 16 sec.
Please choose pressure range.
