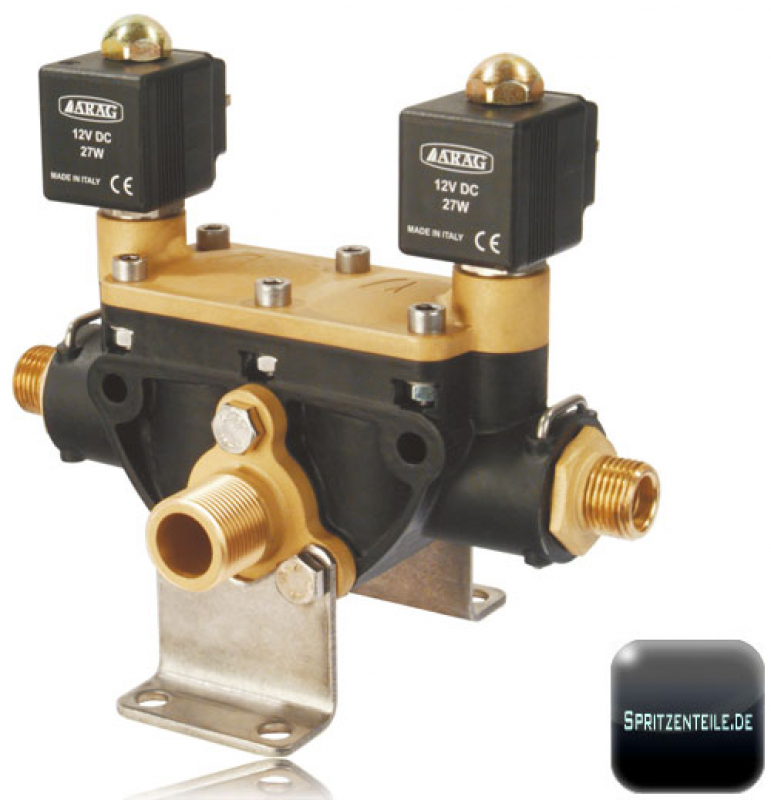

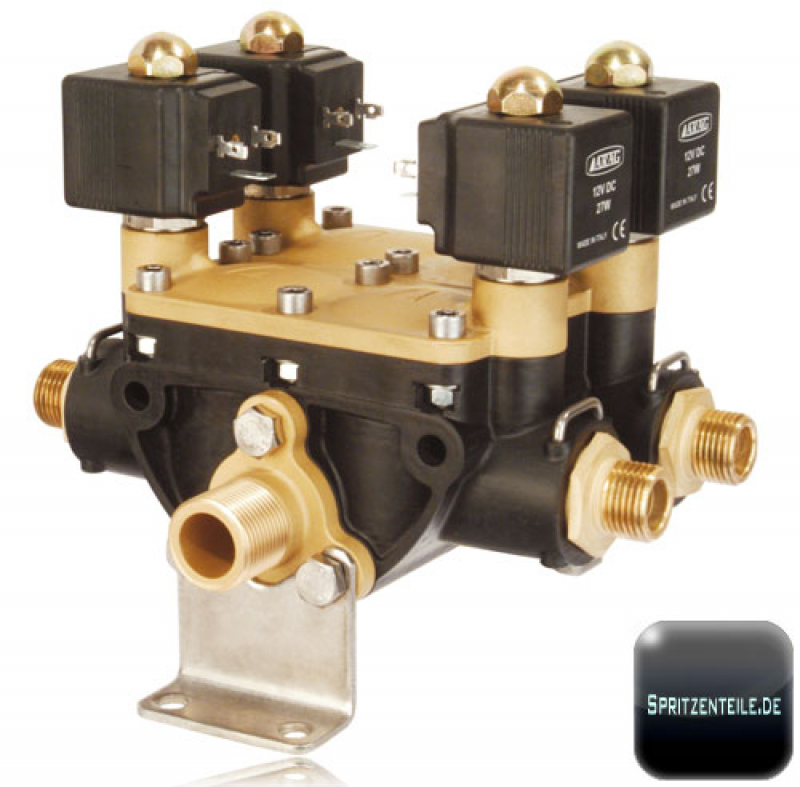

The new control units with solenoid valves are designed to be connected with computerized electrical systems for spraying and row spraying closing. These units, very compact and made of highly resistant materials, consist either of 2 or 4 section valves.
Very compact
Parts in fibreglass reinforced Nylon®, brass and stainless steel
Teflon® seals
Normally closed 12 Vdc solenoid valves
Two solenoid valves into a single modular body
Brass inlet flange with 3/4" threaded external connection
Brass outlet connectors with 1/2" threaded external fork connection compatible with all connections of valves series 463

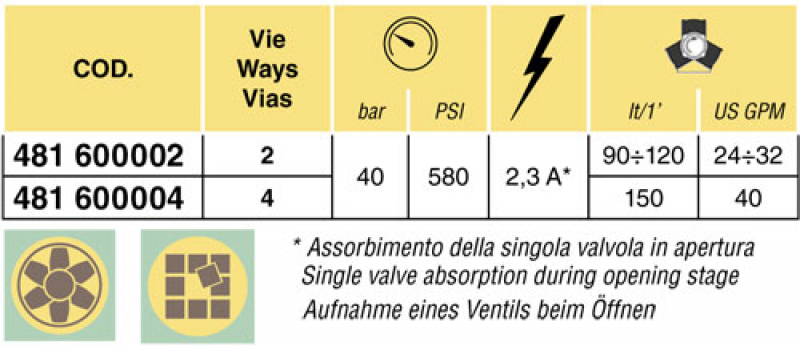

Max. pressure 40 bar
Max. flow rate 150 l/min.
Please choose the numbers of section valves. Fittings in brass see here !
