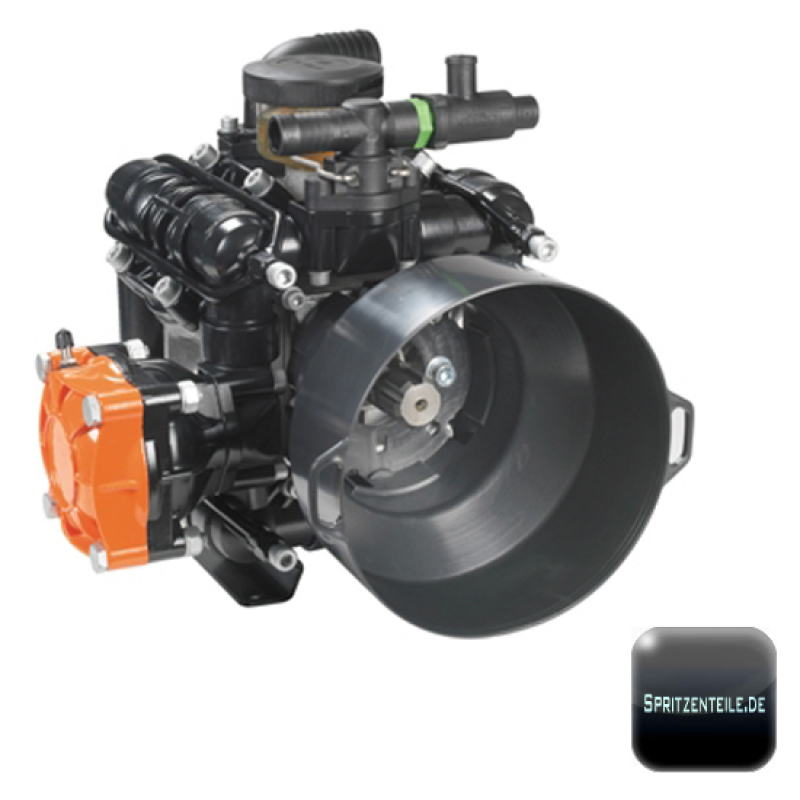

Low pressure diaphragm pump from the manufacturer Comet Italy. The pump is equipped with 4 cylinders and offers a delivery of 162 l/min at max. pressure 20 bar. Heads and manifolds made of plastic coated aluminum, standard pressure accumulator. The delivery takes place with pump socket, but without pressurestat and optional with safety valve. The diaphragm pump has a 1 ⅜" power-drive for 550 RPM with through shaft.
Connections:
Suction tail 90° ø 40 mm
Delivery tail 90° ø 25 mm

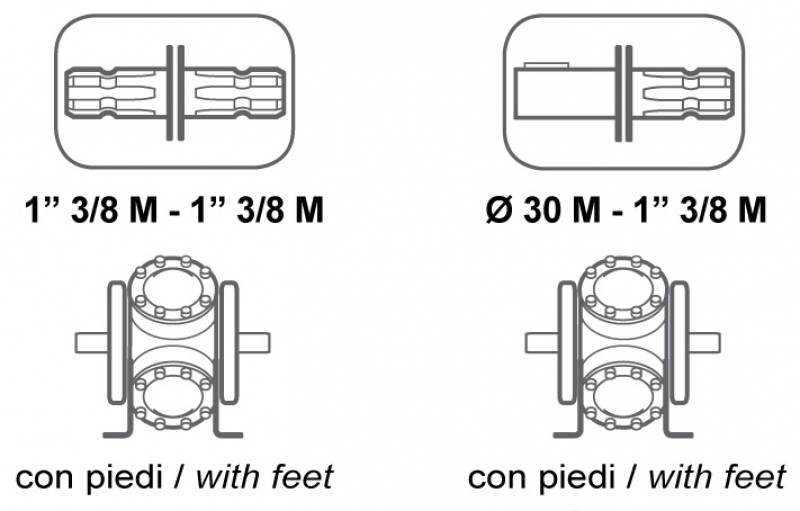

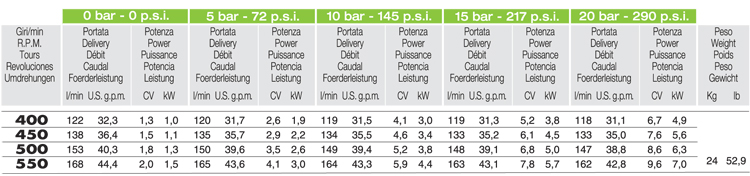

Technical data, see table – spare parts and spare part list for download. Please select drive.
Recommendation for suitable power units at hydraulic drive:
