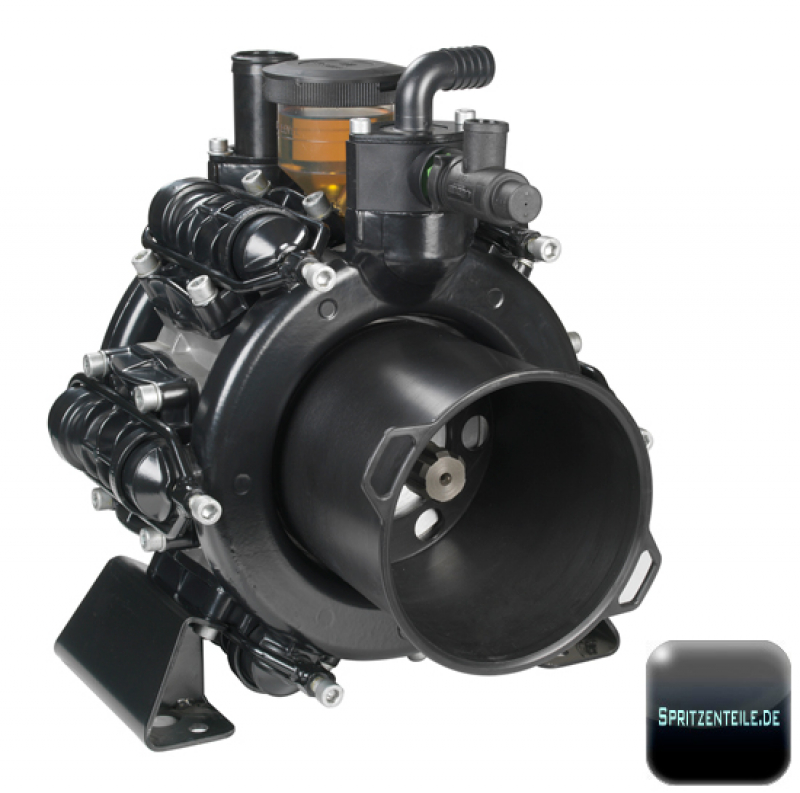

Piston diaphragm pump from the manufacturer Comet from Italy. The pump has 6 cylinders with a capacity of 193 l / min at a maximum pressure of 20 bar for a capacity of 550 rpm. Pumpheads and collectors made of aluminum with plastic coating. Supplied with pump base, without pressure regulator, optionally with safety valve as accessory.

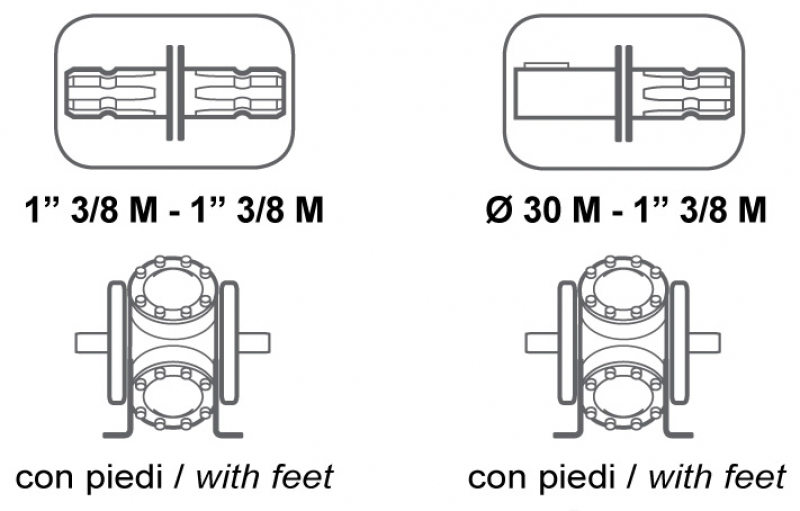

The BP 205 K pump has various connection options:
1 ⅜" PTO drive including through drive
1 ⅜" PTO and shaft ø 30 m
Please select PTO protection and drive as well as desired accessories.

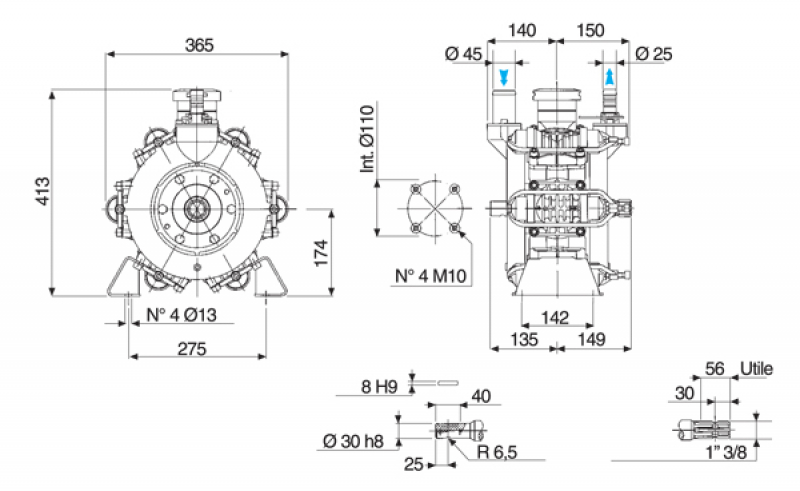

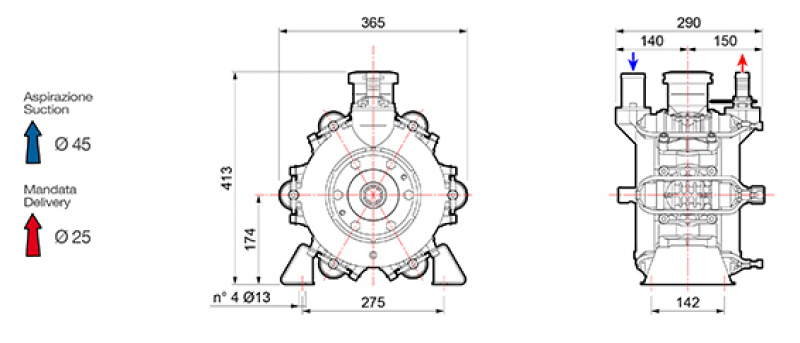

Connections:
Suction tail straight ø 45 mm
Delivery tail straight ø 25 mm

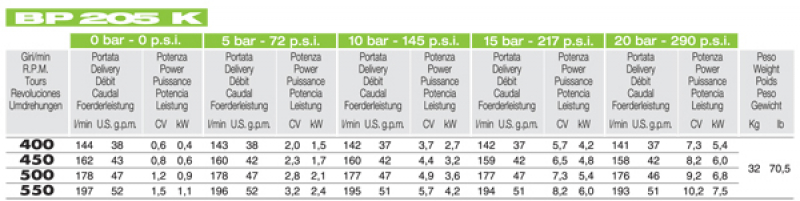

Technical data, see table – spare parts and spare part list for download. Please select drive.
Recommendation for suitable power units at hydraulic drive:
