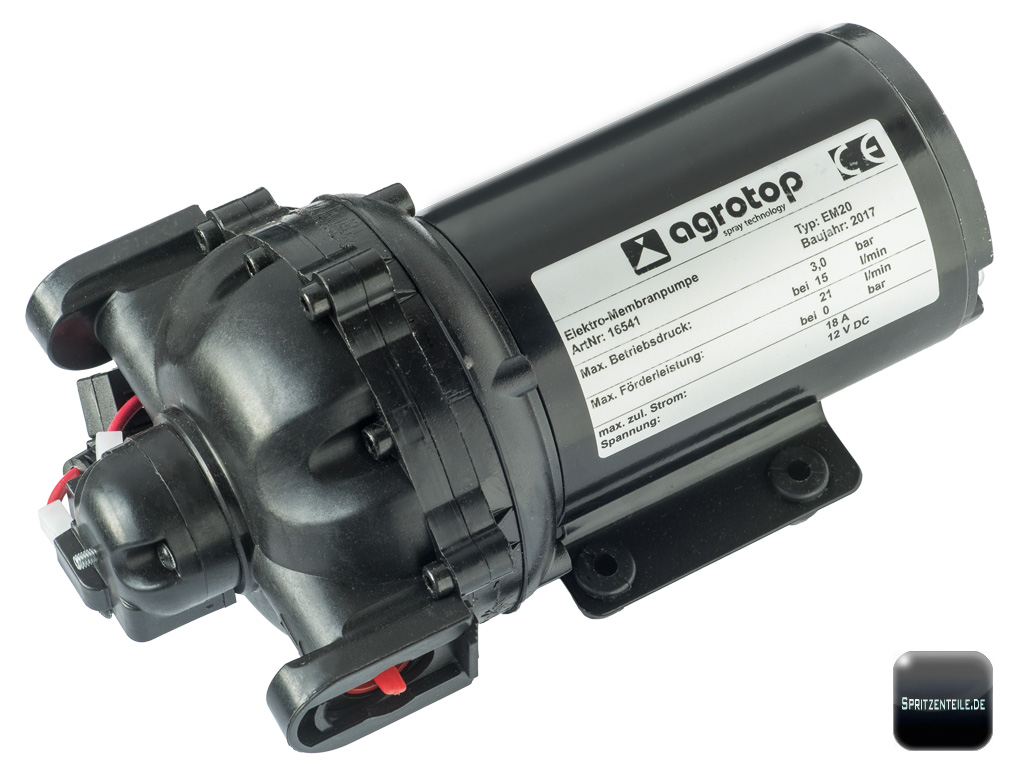

The diaphragm pump of Agrotop with five membranes is flanged directly to a 12 Volt DC motor. The robust and proven design of the pump is ideal for pesticide solutions such as use in small portable devices and sprayer for special applications. This small electric pump is used in the continuous internal cleaning of Agrotop. The pump is equipped with a pressure switch, which interrupts the power supply at overpressure. Supplied with plug connections on the pressure and suction side:
1x plug connection straight with ø 19 hose nozzle
1x plug connection straight with ½" external thread
flow rate* 12,7 l / min – max. pressure up to 3.0 bar at 12 V / 18 A drive – EPDM membrane
* Values refer to water at 20°C and depend on the delivery head.
