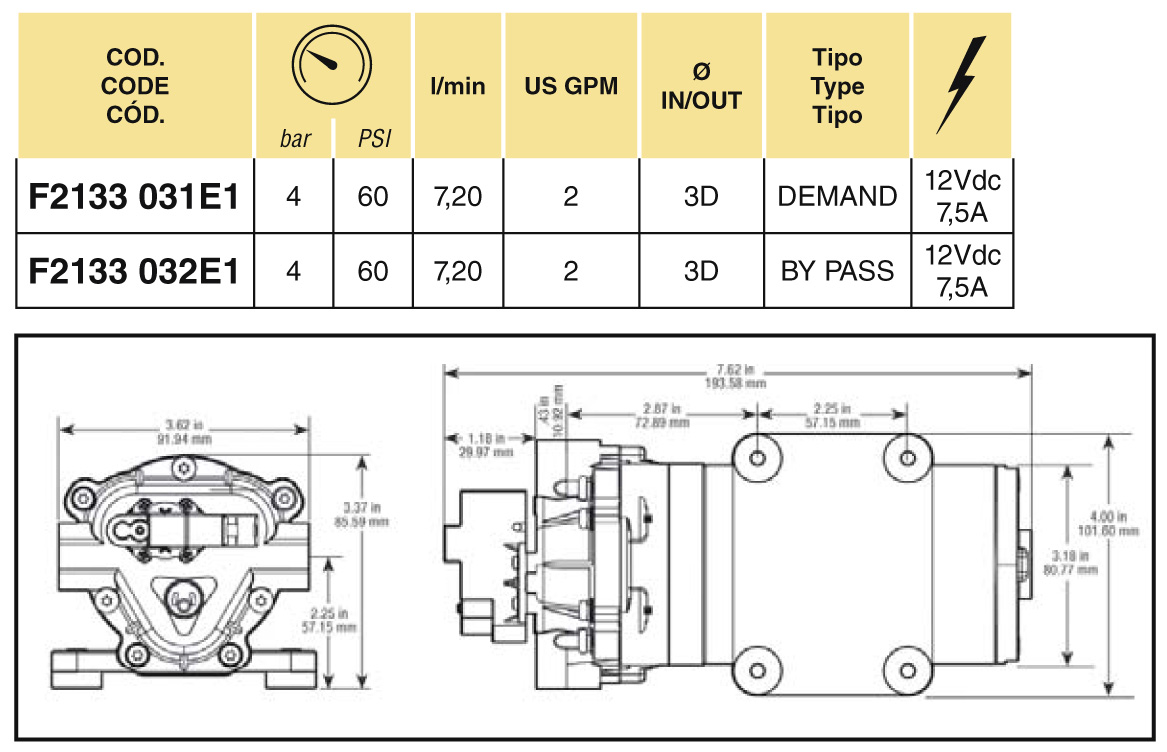

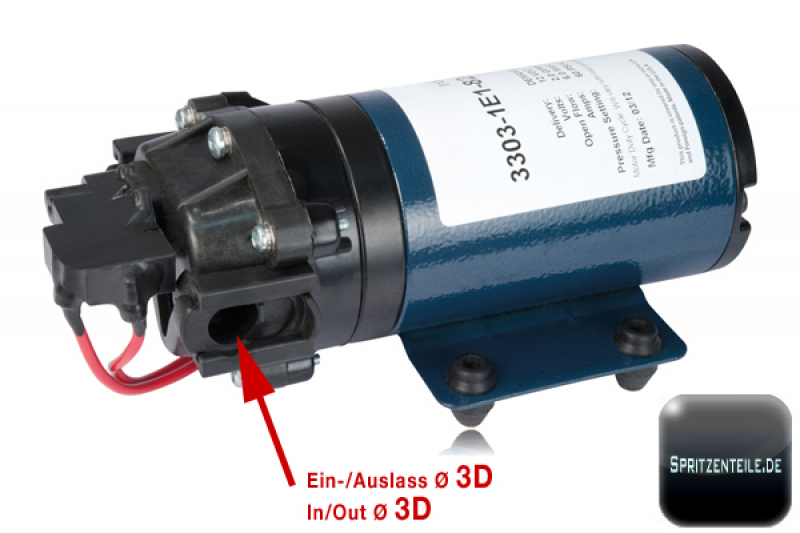

The ProFlo diaphragm pump by REMCO has three membranes and a 3D-plug connector, the flow rate is 7,2 l/min at 4 bar pressure. This pump is versatile and with the 12-volt electric motor provides a good opportunity to work in tight spaces and in areas that require good throughput. The pump is not self-priming.
Areas of application:
FARM machinery and equipment
Camping and caravans
boats
Any other movable or fixed installations
Equipment:
Valves with Viton®
Membrane of SANTOPRENE®
Connection with hose fittings at the 3300 series with 3D plug connectors(see below - sold separately)
