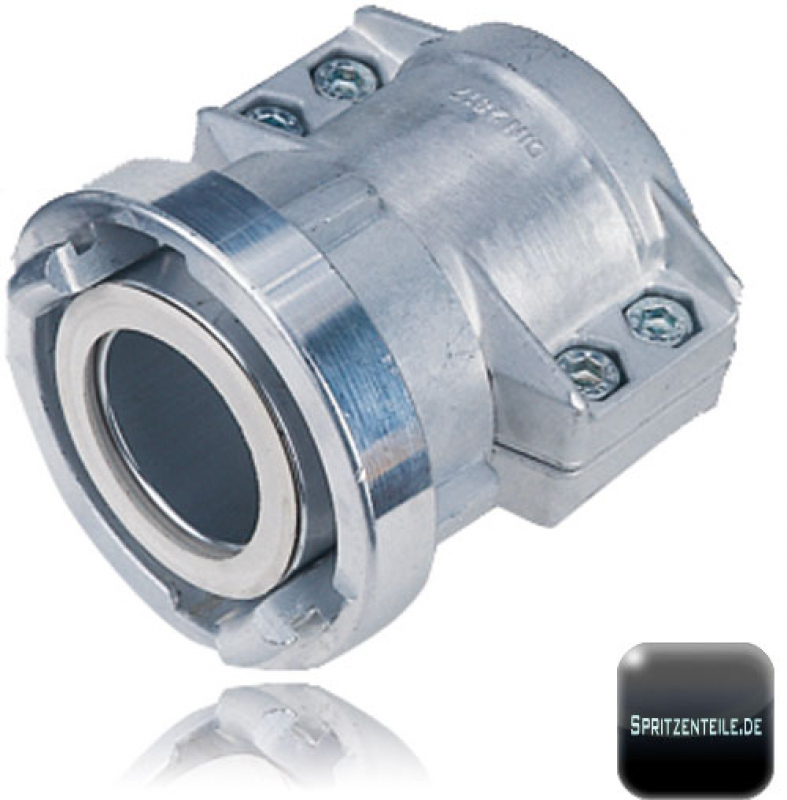

Delivery hose coupling with half shells nominal size 52-C, system Storz, according DIN 2817. The coupling and half shell made of aluminium, two segments with screws and nuts, max. pressure up to 16 bar.
Clamp size: 66 mm
Hose diameter coupling: 32,4 mm
Hose diameter half shell: 32 mm
External cover: 43 to 46 mm

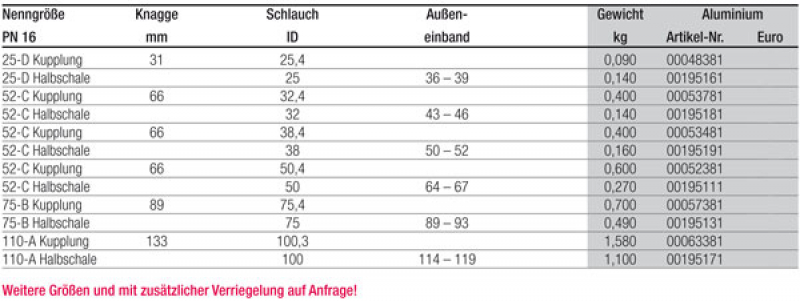

Further technical details see table. Please choose prefered version.
