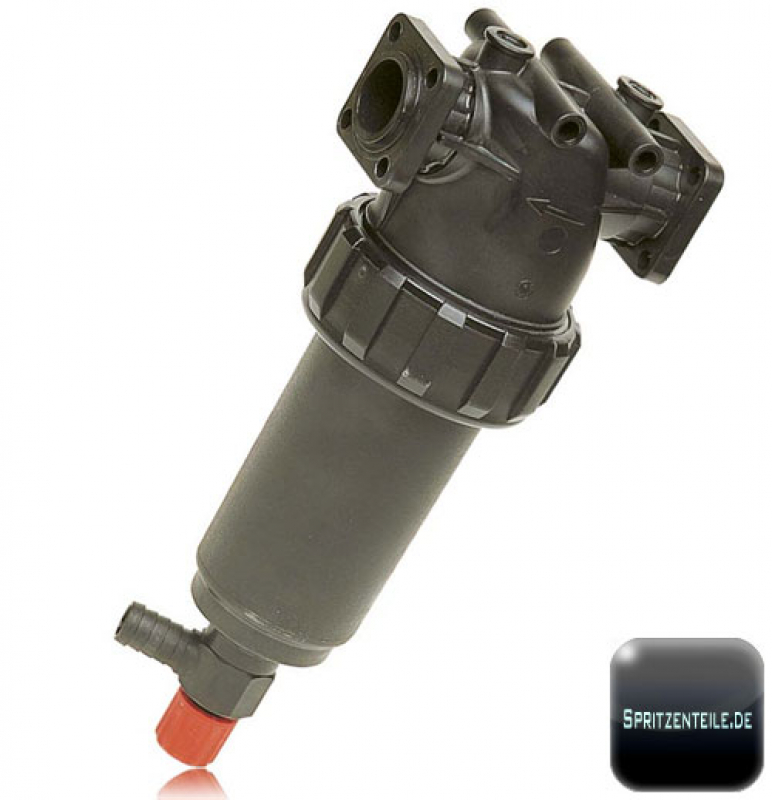

Arag Pressure Filter series 326 flanged

Product No.:: AR3269003
Shipping time:: 5-8 days, if in stock (abroad may vary)
Stock:: pieces
Weight:: 1 kg per piece

Numbers of meshes per inch (25.4 mm):

Construction:

Our standard price 83,17 EUR
Your price from 58,22 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

Pressure filter from the manufacturer Arag with flange can be connected directly to the valves series 473.
Recommended to protect the control parts and to ensure maximum nozzle efficiency.

Filter capacity 200 to 280 l/min at a pressure of max. 20 bar
The filter is equipped with EPDM seals
Cover with lock ring
Optional self-cleaning version with drain valve
Screen type Inox 50 or 80 mesh

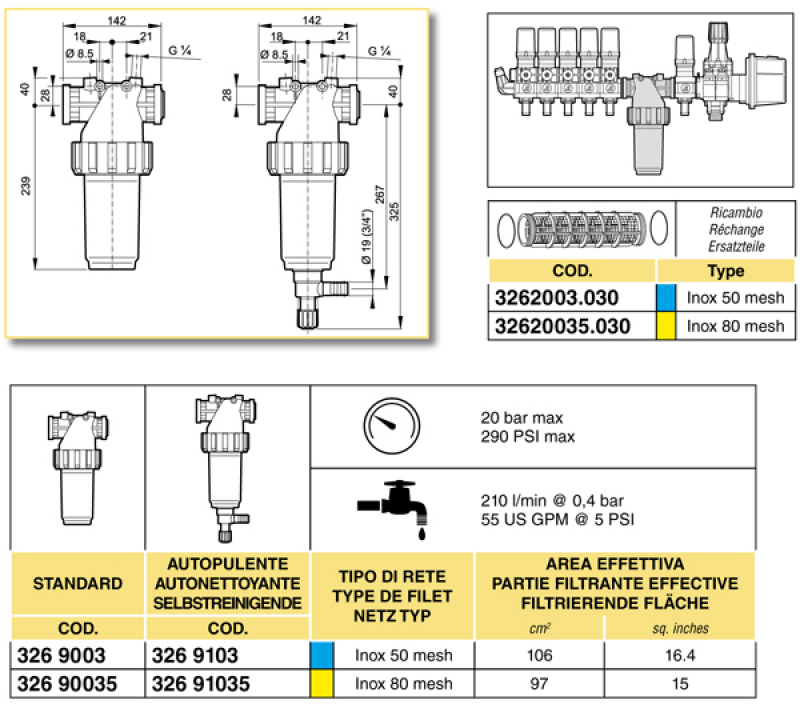

The technical data can be found in the diagram.

Documents

Arag spare parts list pressure filter 326 with flange (757.35 KB)

Arag spare parts list pressure filter 326 with flange and valve (728.18 KB)

This product is compatible with (for example):

Arag filter insert for filters serie 326...

Diameter 58 mm, height 210 mm

Our standard price 35,16 EUR
Your price 24,61 EUR
Shop discount 30%

This product is similar to:

Arag Filter Cap Nut 3262000050 for Series...

for Arag line filter serie 326 and 328

Our standard price 17,95 EUR
Your price 12,57 EUR
Shop discount 30%
