Arag Boom Section Valve electric series 863T

Product No.:
AR863T001
Shipping time:
if in stock 5-8 days if in stock 5-8 days (abroad may vary)
Weight:
0.75 kg per piece
Our standard price 317,26 EUR
Your price 222,08 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

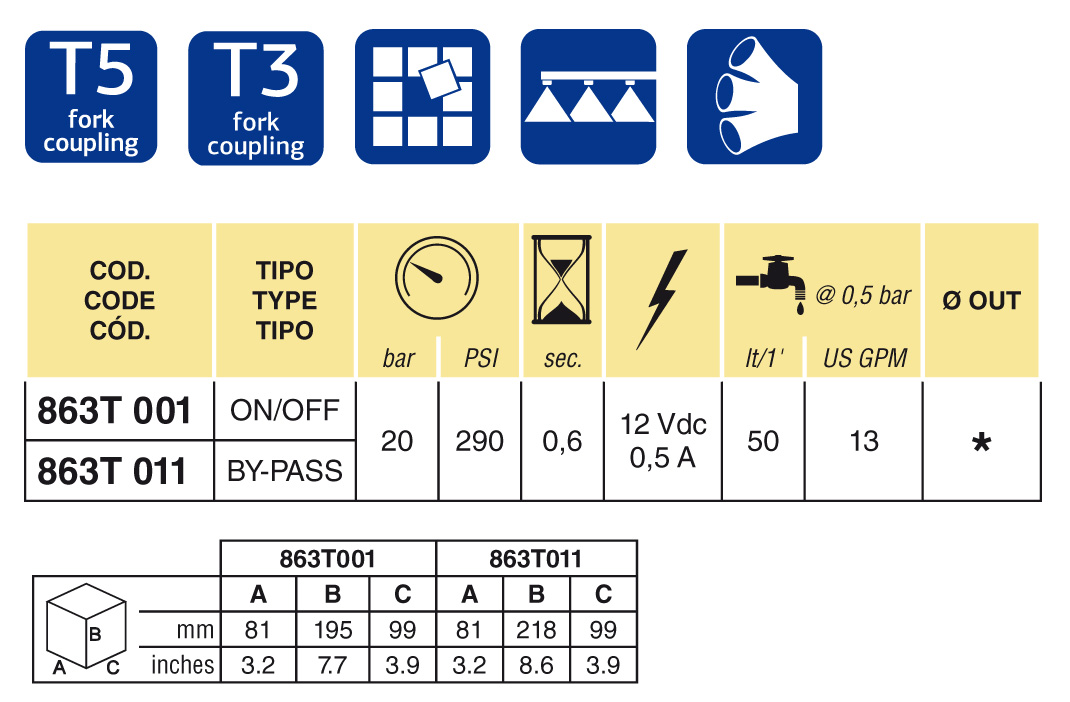

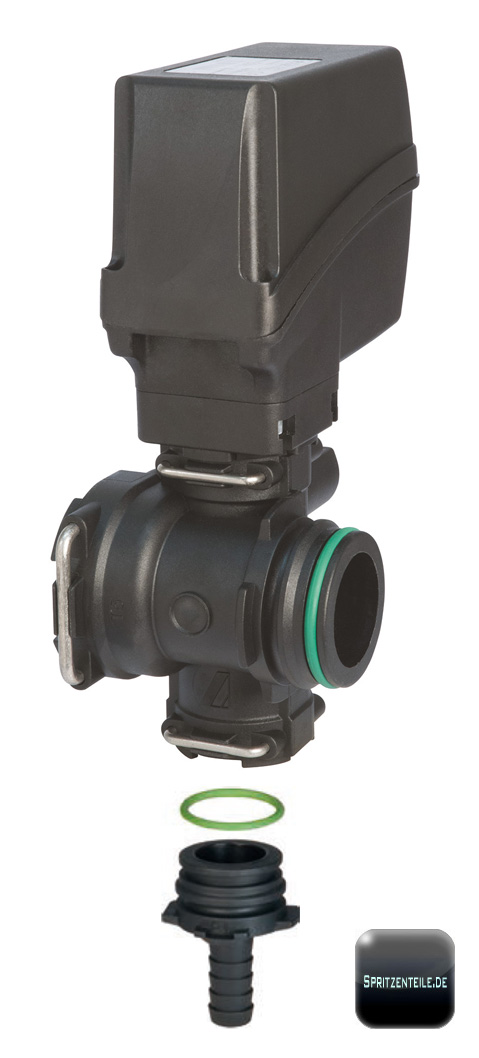

Electrically operated part width with T5 fork connection from Arag without hose fitting for the outlet
  • Housing made of glass fiber reinforced Nylon®
  • Internal parts made of Delrin® and stainless steel AISI 303
  • Seals made of Viton®
  • Resettable internal fuse (cut off power supply for 20 seconds)
  • Power supply 12 Vdc 0.5 A
  • Valve type ON / OFF, closing time 0.6 sec
  • Flow rate at 0.5 bar is 50 l / min / 13 US GPM
  • Pressure range up to 20 bar / 290 PSI

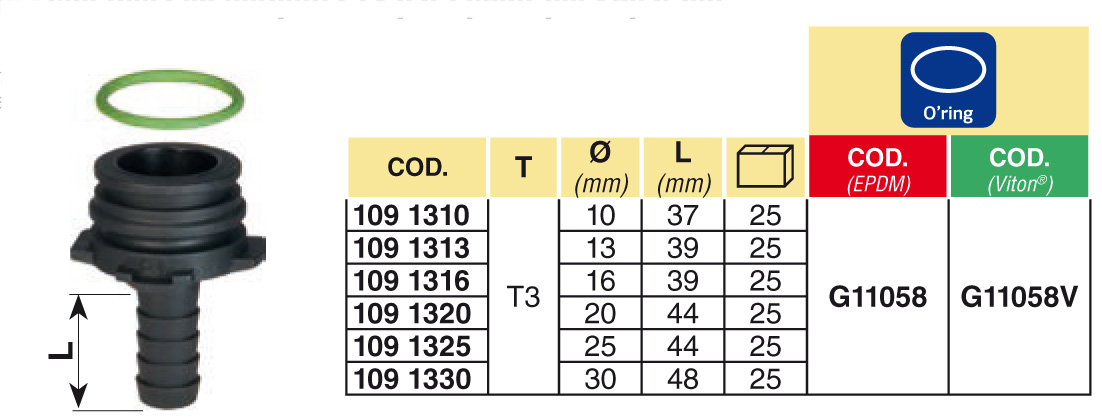

If supplied with hose fitting, please select size of hose fitting with T3 fork connection for outlet.

Documents
Spare parts list Arag Boom Section Valve electric series 863T  (956.25 KB)
