Arag Electro valve unit with backflow - T5 - series 863

Product No.:
AR86301251-AR463001A10-AR219040|AR010004
Shipping time:
5-8 days, if in stock 5-8 days, if in stock (abroad may vary)
Weight:
2 kg per piece
Our standard price 671,38 EUR
Your price from 469,97 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

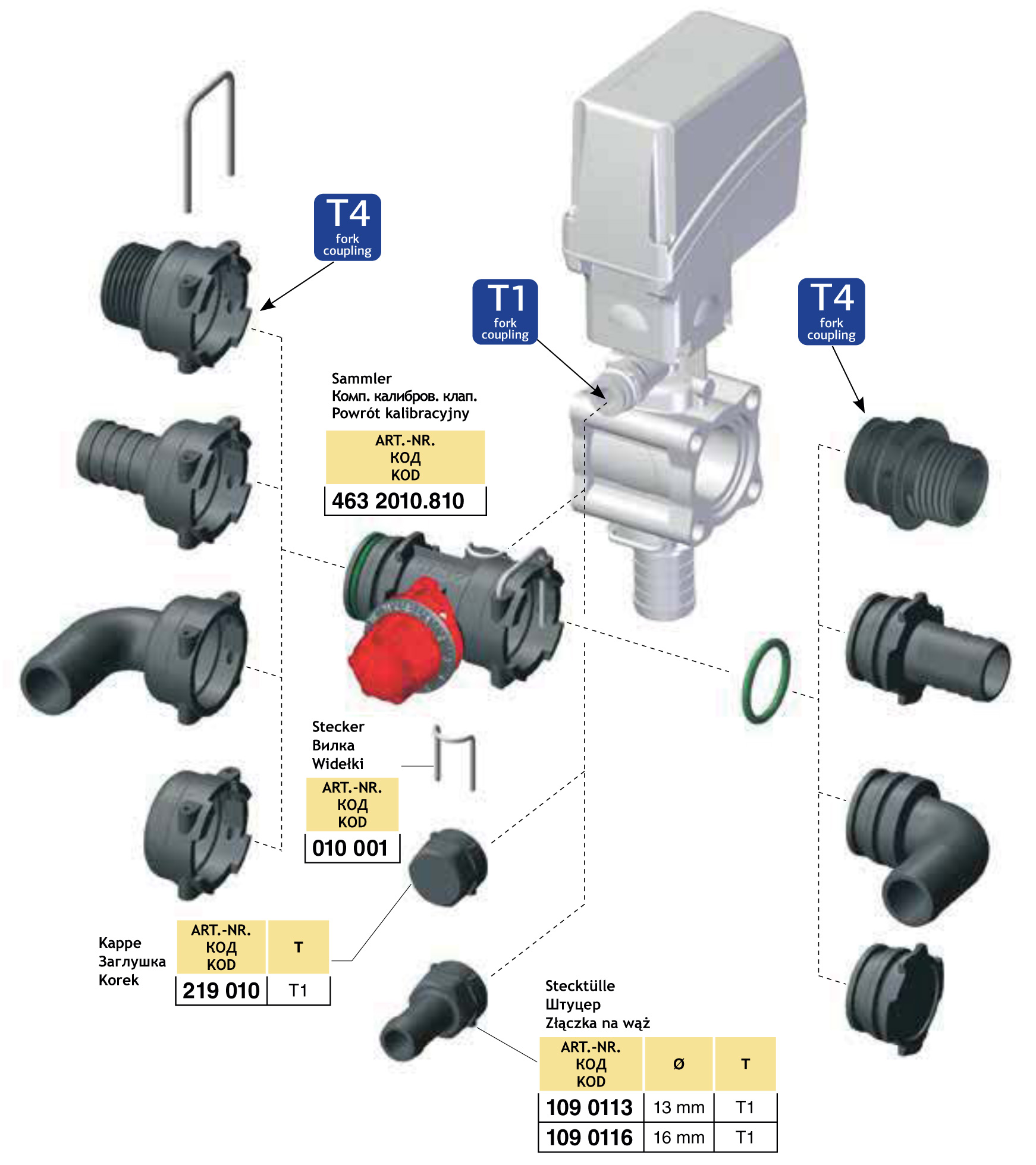

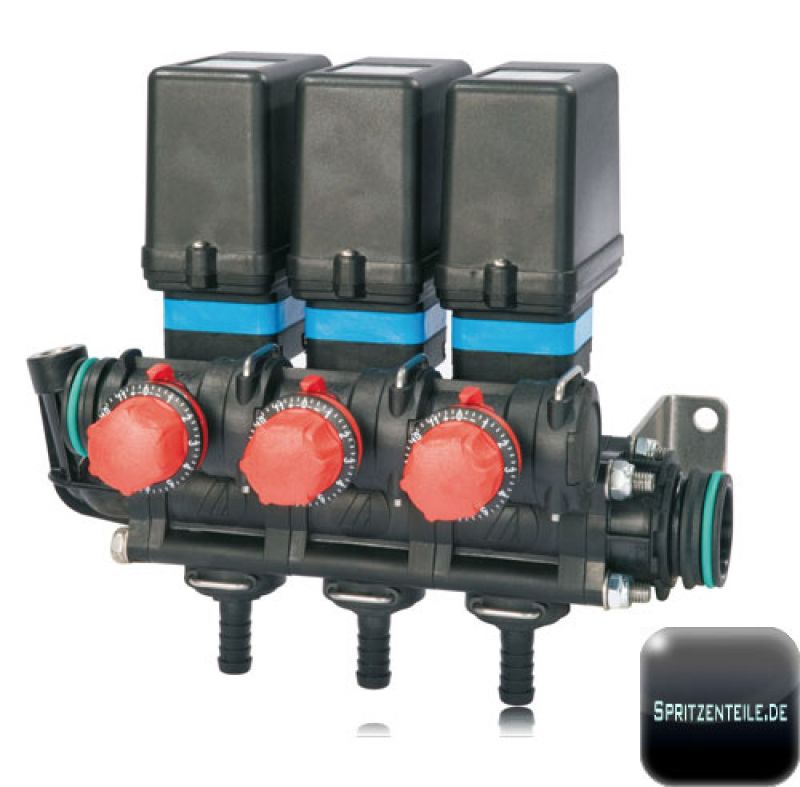

Electro valve unit with adjustable backflow and T5 fork connector for series 863.
  • Consisting of 863011S valves

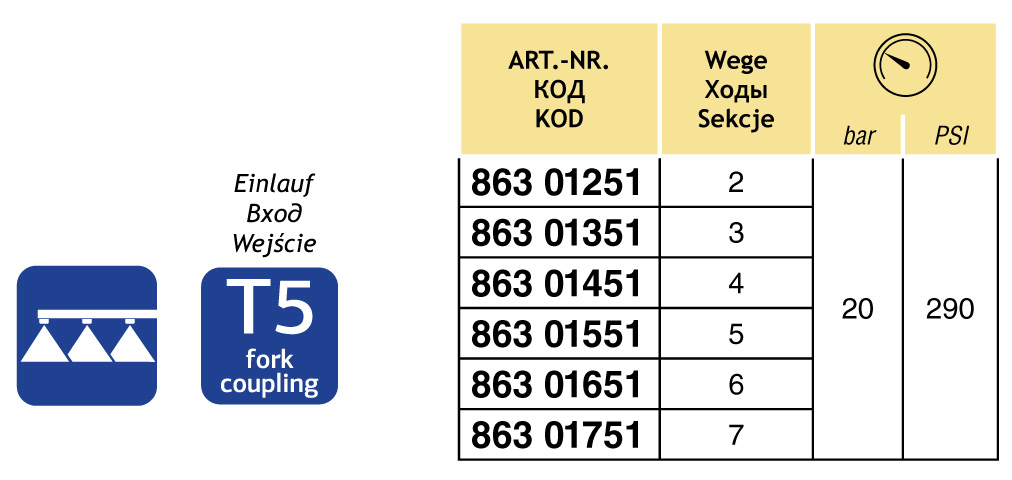

  • From 2 up to 7 part-broads, completly installed, link possibility for a manometer or digital pressure sensor
  • Max. pressure 20 bar
  • With by pass T4 fork connection
Please choose the amoung of valve parts.
