Arag valve unit electric series 863T

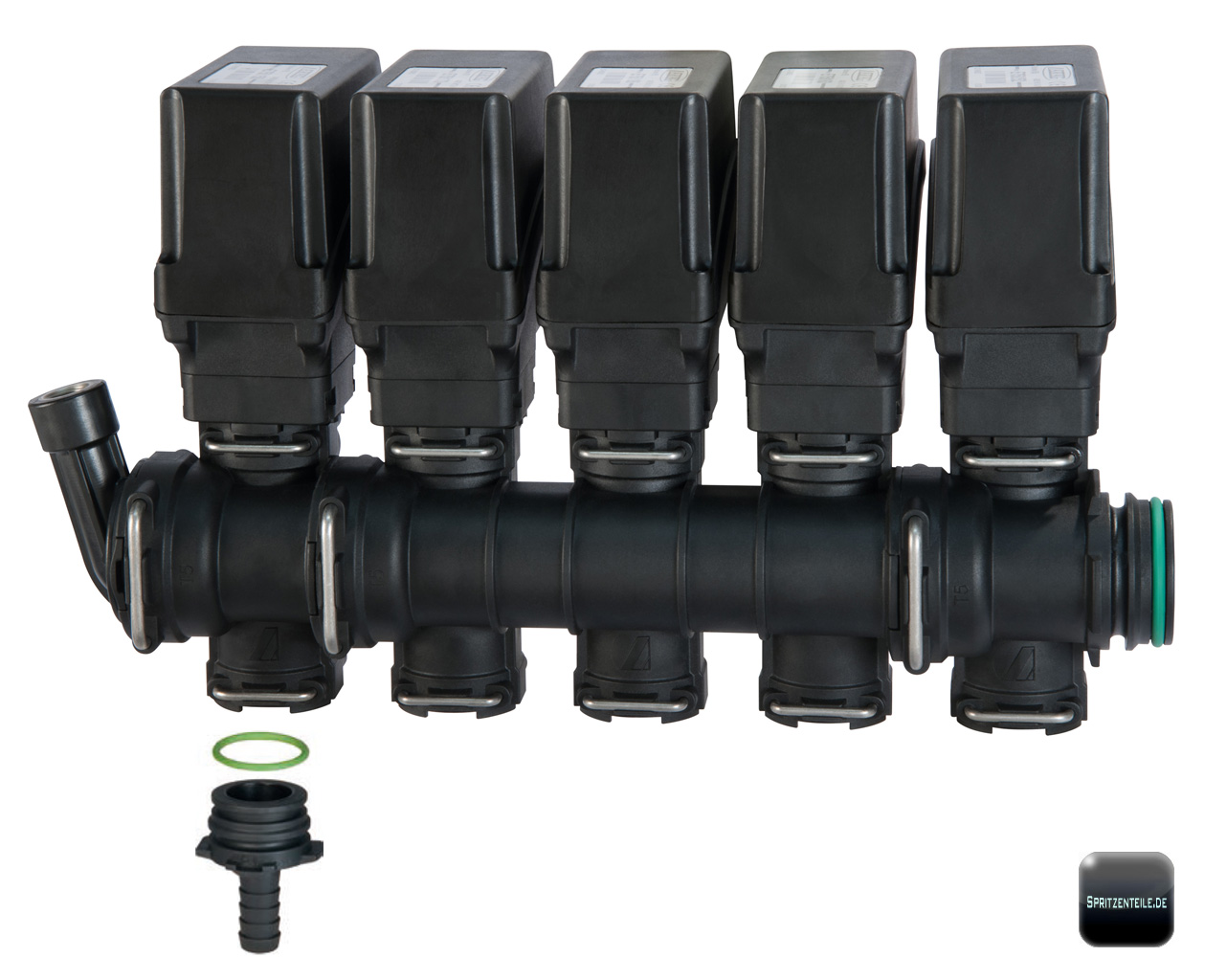

Arag series 863T electric valve unit with T5 fork connection consists of 863T001 valves, delivery with or without fittings for the outlets.

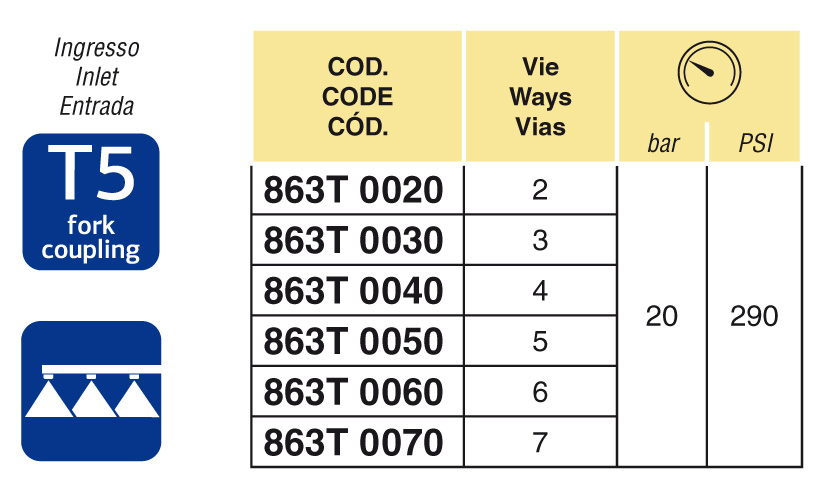

- From 2 to 7 sections available
- Housing made of glass fiber reinforced Nylon®
- Internal parts made of Delrin® and stainless steel AISI 303
- Seals made of Viton®
- Resettable internal fuse (cut off power supply for 20 seconds)
- Power supply 12 Vdc 0.5 A
- Valve type ON/OFF, closing time 0.6 sec
- Flow rate at 0.5 bar is 50 l / min / 13 US GPM
- Pressure range up to 20 bar / 290 PSI
