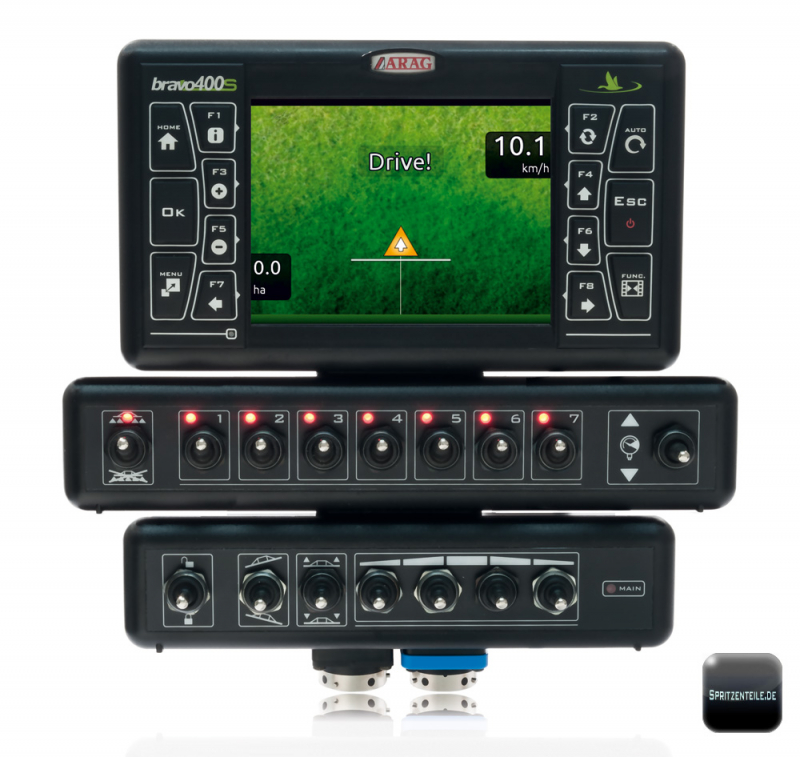

Arag Bravo400SLT for crop sprayer
BRAVO 400SLT is the new computer integrating all liquid output management and navigation functions without using any external ECU. It offers the same functions as BRAVO400S, it is easy to install and characterized by an excellent price-performance ratio.
Main features
Main features
- Automatic boom section closing
- Preset for connection to automatic driving system
- Variable application rate management through prescription maps
- Controls up to 7 boom sections and hydraulic functions
- Can be connected to the full range of Arag GPS receivers
- The main page shows, simultaneously, information an visual help fpr driving and information on the spraying process. While driving, the user can selcet the most useful combination of information by pressing a dedicated button.
- The ”level indicator” function shows the quantity of liquid left in the tank in real time an calculates automatically the range of operation. Thanks to the flow-meter installed in the system it is possible to carry out a precise and entirely automated calibration of the tank.
- Dedicated pages show images captured by two external cameras, a job overview, information, alarms and a vriable application map.
- Main drive functions:
- calculation of area and perimeter
- realignment
- marking of different types of points
- return guide
- At it can memorize multiple configurations, the monitor can be easily used on a number of different tractors and machinery.
- 2 USB ports and 1 SD card port for data transfer and software updates.
- New high resolution (VGA 640 x 480 pixels) 5.7" TFT display.

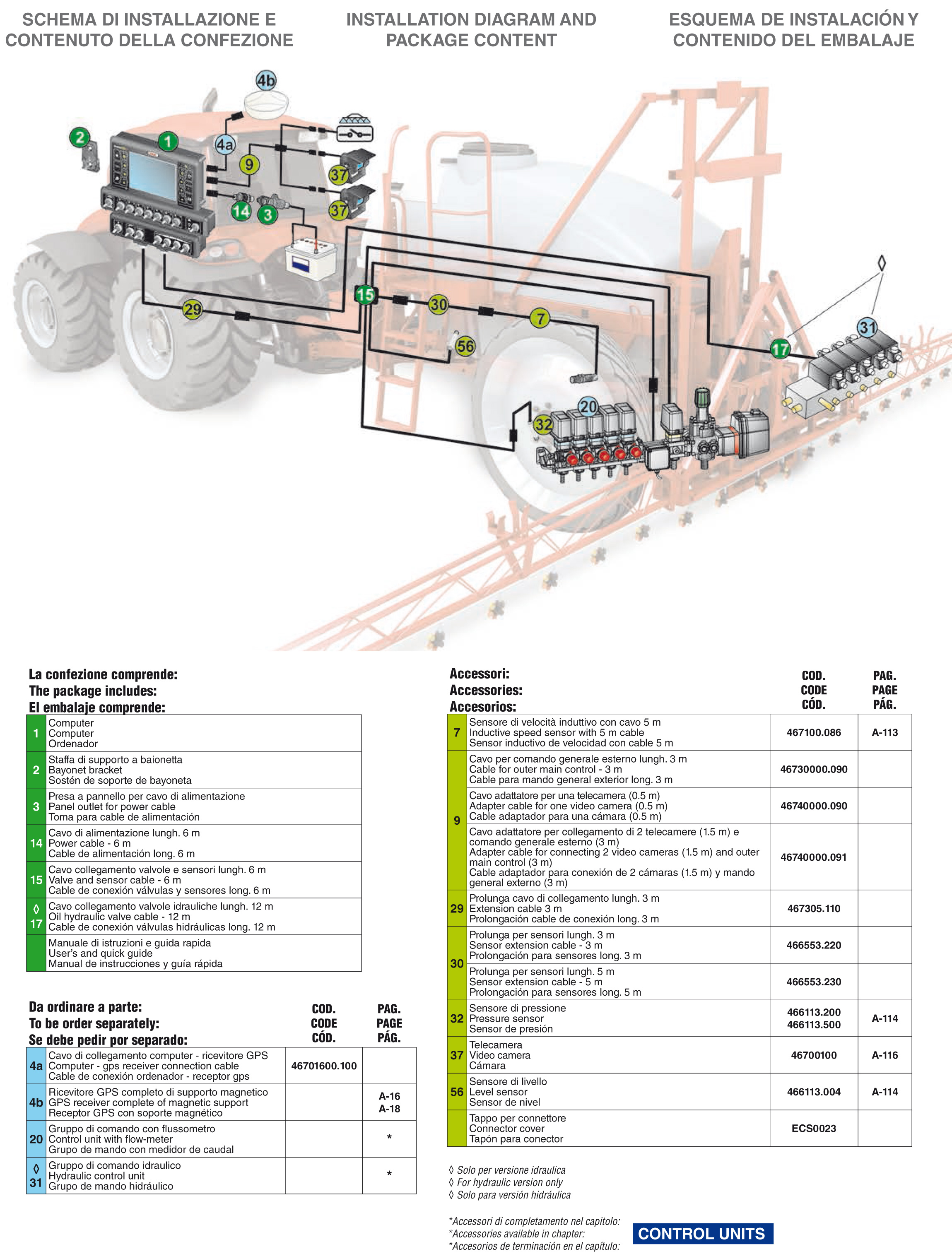

- Installtion guide / Seletron val (496.75 KB) :
