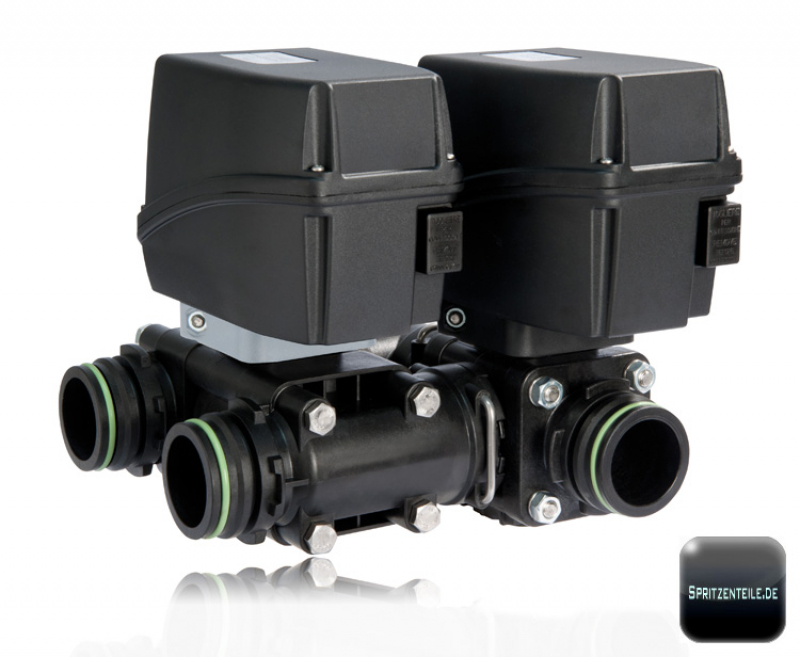

ARAG Main Control Unit with ball valve
ARAG Main Control Unit with ball valve T6
Preview: ARAG Main Control Unit with ball valve
Preview: ARAG Main Control Unit with ball valve T6
ARAG Main Control Unit with ball valve T6
ARAG Main Control Unit with ball valve
ARAG Main Control Unit with ball valve T6
Mobile Preview: ARAG Main Control Unit with ball valve
Mobile Preview: ARAG Main Control Unit with ball valve T6

ARAG Main Control Unit with ball valve T6

Product No.:
AR853GA7C00A
Shipping time:
3 weeks 3 weeks (abroad may vary)
Weight:
3 kg per piece
Our standard price 1.465,63 EUR
Your price 1.025,94 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

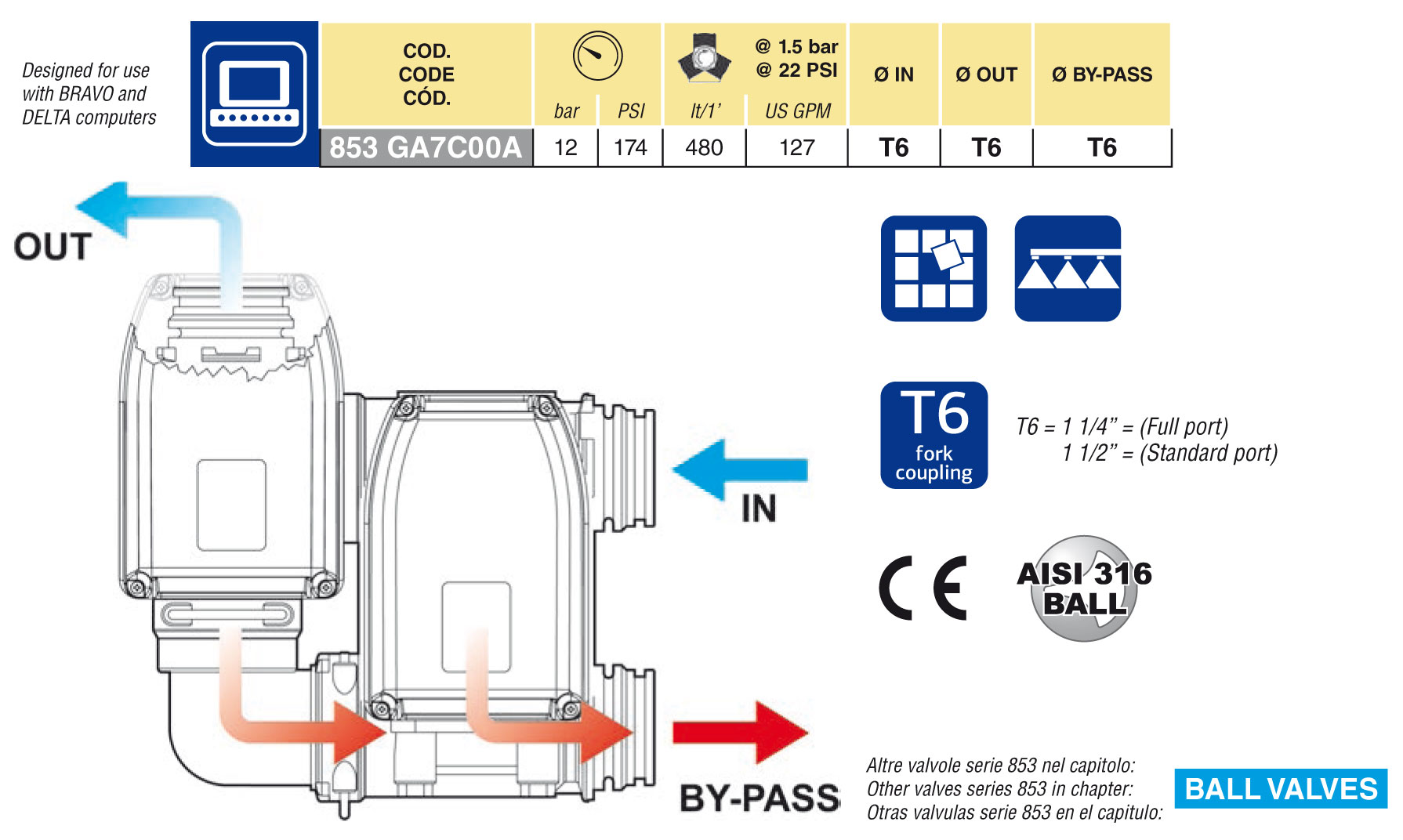

Main Control Unit with ball valve series 853 from ARAG is composed of
  • 3-way main valve (switching time 0.3 sec.) cod 853814S66J
  • Proportional control valve (switching time 7 sec.) cod 853K740CCA
  • Drain manifolds
  • High flow rate 480 l/min
  • Operating pressure 12 bar
  • New modular system with T6-fork-coupling, dimension 1 1/2"
  • Quick assembly, simple and compact
  • Ball and rotating pin in stainless steel
  • Ball seats in TEFLON®
  • Internal O-ring in Viton®
  • Flange fastening stays in stainless steel, protected by valve body
  • Electric 12 V DC operation
Additional fittings for T-fork-coupling see here !
