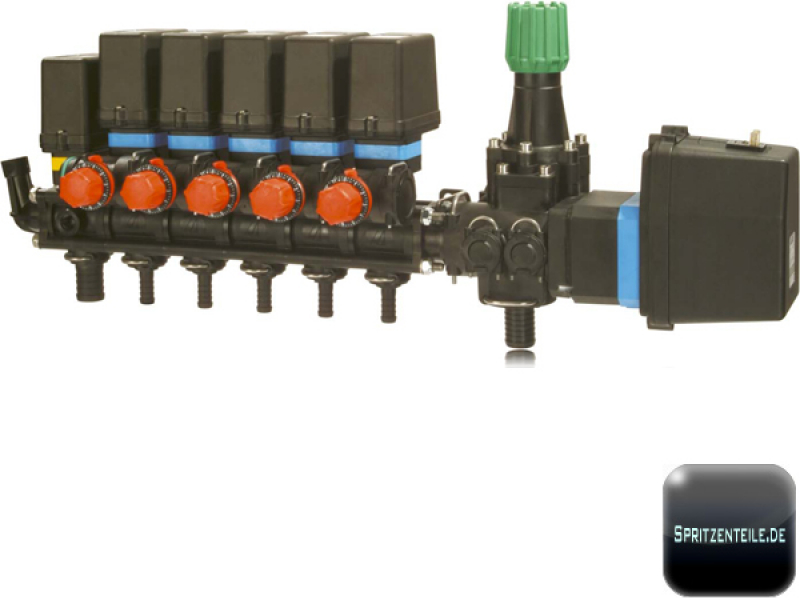

Example valve with 5 Boom Sections

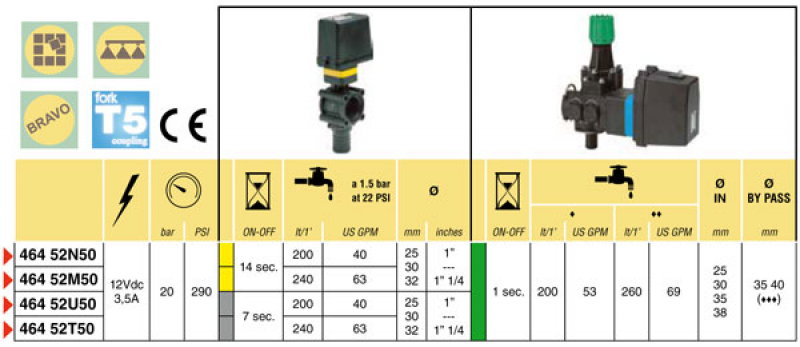

Arag Armature with pressure control series 464 – II

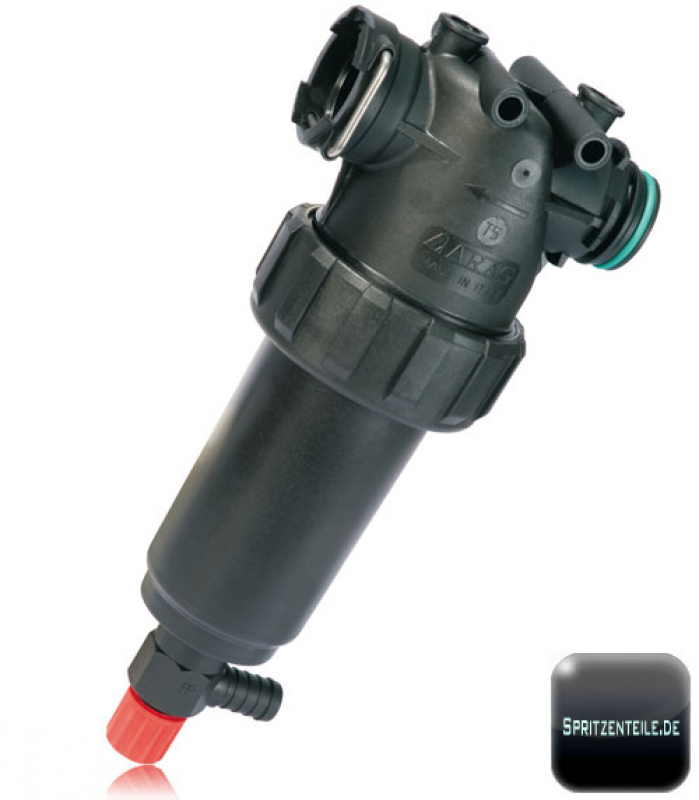

Example Pressure Filter

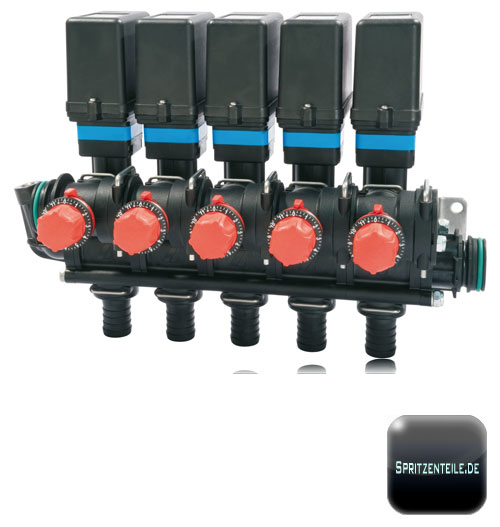

Section-Valve by Arag
Preview: Example valve with 5 Boom Sections
Preview: Arag Armature with pressure control series 464 – II
Preview: Example Pressure Filter
Preview: Section-Valve by Arag
Arag Armature with pressure control series 464 – II
Example valve with 5 Boom Sections
Arag Armature with pressure control series 464 – II
Example Pressure Filter
Section-Valve by Arag
Mobile Preview: Example valve with 5 Boom Sections
Mobile Preview: Arag Armature with pressure control series 464 – II
Mobile Preview: Example Pressure Filter
Mobile Preview: Section-Valve by Arag
TOP

Arag Armature with pressure control series 464 – II

Shipping time:
5-8 days, if in stock 5-8 days, if in stock (abroad may vary)
Weight:
6 kg per piece
Our standard price 2.475,85 EUR
Your price from 1.733,10 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description
Electrical proportional armature with main control valve and T5 fork connection, from two to nine part-broad, central turning on valve and electrical relief valve, optional with pressure filter and flowmeter
  • 12 volt power supply
  • Range of control until 10 bar
  • Closely up to 20 bar
  • Flow rate main valve max. 240 l/min
  • Boom section with flow rate max. 120 l/min
  • Hose connectors for selection (for further infos see also downloads)
The connection to the valves are the usual cube plugs. Installation at a sprayer or other spraying machine can be easily done via the mounted bracket.



Documents

This product is compatible with (for example):

Control box for crop spraying
Arag Control box for crop spraying 4669
for up to 7 boom sections
Our standard price 366,93 EUR
Your price from 256,85 EUR
Shop discount 30%
