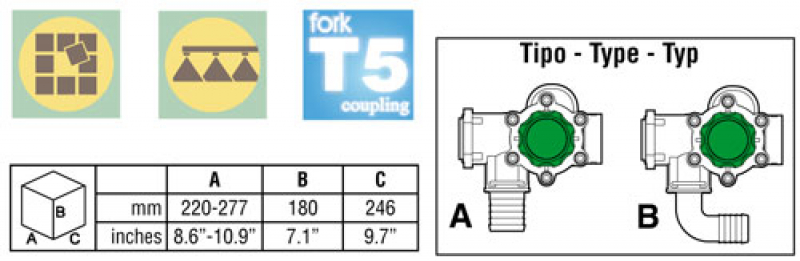

Arag Manual Constant Pressure Control Unit series 471T

Product No.:: AR471T202|AR463T0620-AR473001.A19C-AR1091310|ARG11058V-AR219140|ARG11054V-AR471202A40
Shipping time:: 5-8 days, if in stock (abroad may vary)
Stock:: pieces
Weight:: 2.5 kg per piece

(5) Number of boom sections:

(3) Pressure control valve & Hose fitting outlet:

(2) Hose fitting inlet main valve:

(5) Hose section valve outlet:

(6) Return pressure collector left:

(6) Return pressure collector right:

(2) Hose fitting return main valve:

Our standard price 662,54 EUR
Your price from 463,78 EUR
Shop discount 30%

incl. 19% tax excl. Shipping costs

Description

Manually operated armature with pressure control and T5 fork connection, for crop spayers from Arag consiting

(1+2) Main control valve (series 471T202)
(3) Optional with Proportional valve (series 463T074)

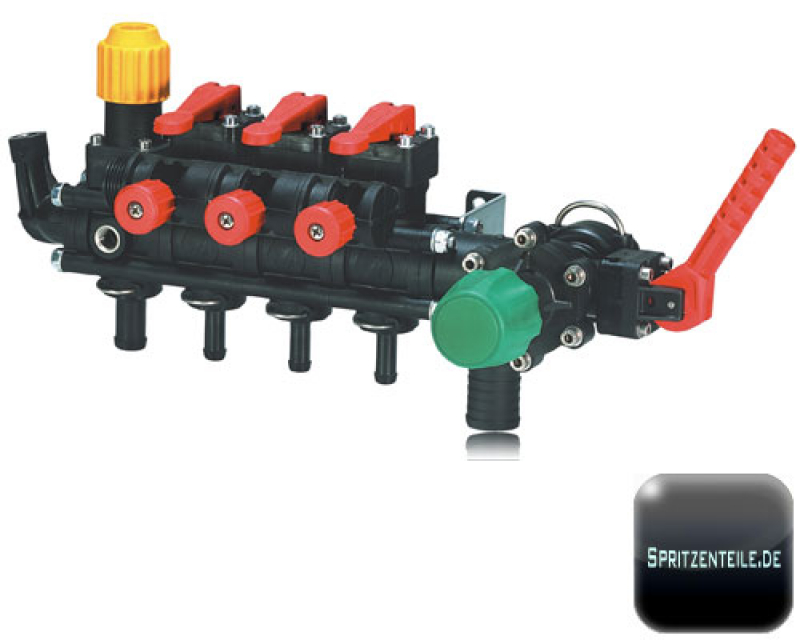

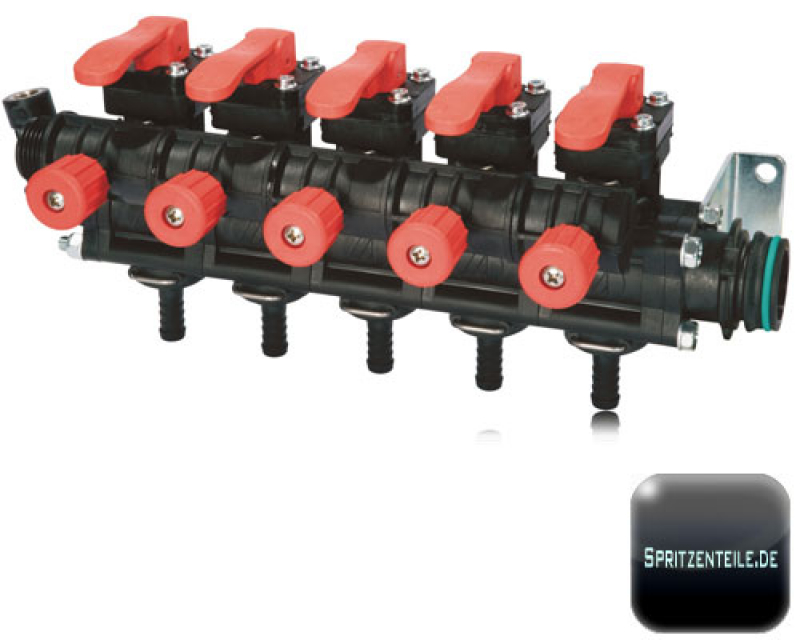

(5) 2 to 7 boom sections (series 463T061) with (6) adjustable flow
(7) Pressure gauge connection ¼" female thread – pressure gauge not included
Max. flow rate 180 l/min.
Max. pressure 20 bar

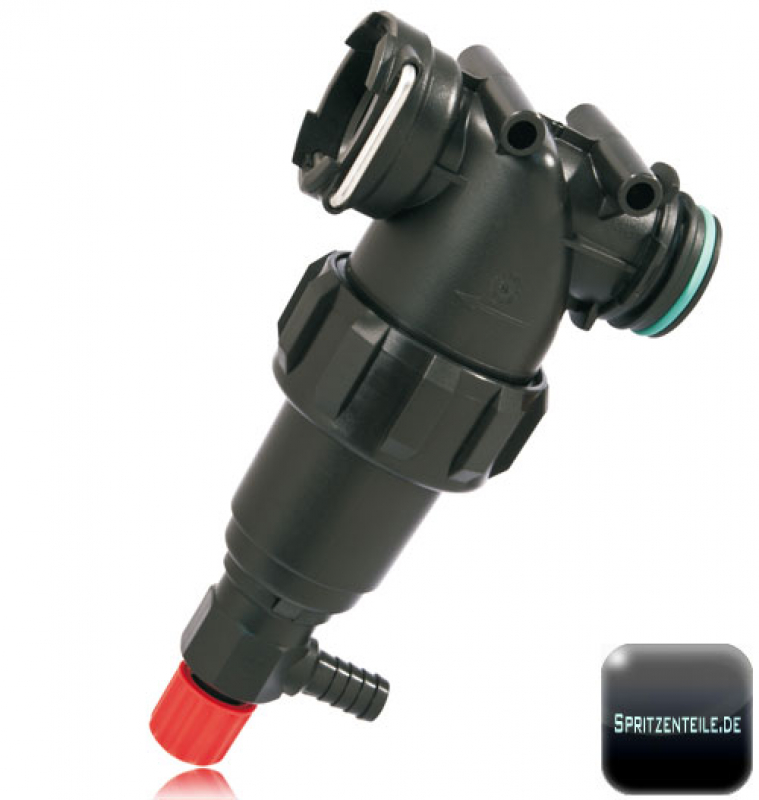

(4) Optional with Pressure Filter (series 322) inclusive self-cleaning valve

Please see also further information in downloads for outlet and fitting ø. Choose numbers of valves.
