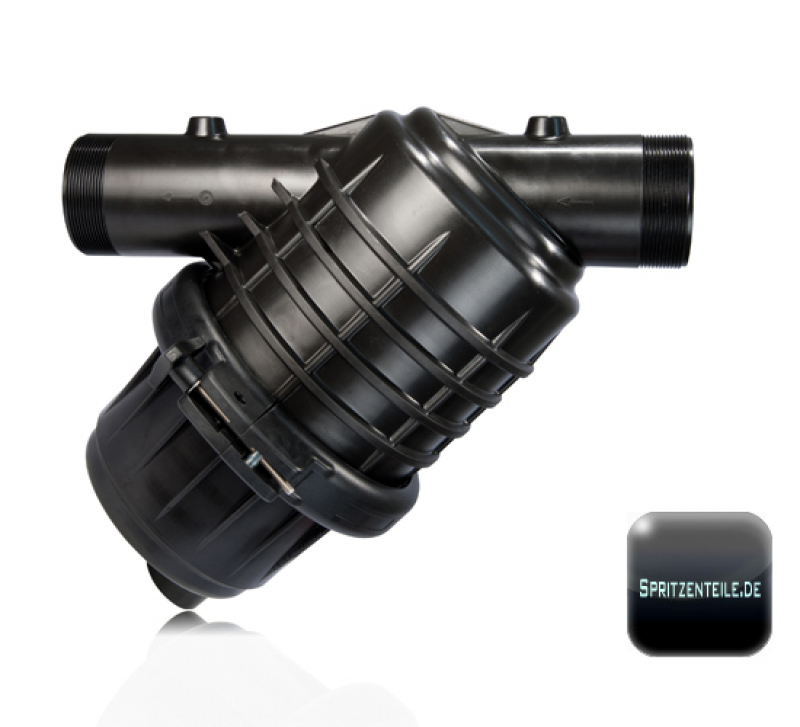

This high performance filter made by Arag offers a flow of 760 l/mn and with a filter surface of 913 qcm it offers a enorm capacity. It is made for applicating in a spray irrigation and irrigation-lay close. On top in the Filtercase are two threads 1/4" to montage a Manometer. So the pressure can be shown in front and after the filter and contamination can be quickly detected. The filter cartridge has a dimension of 145 x 320 mm and the polypropylene case is stably up to 8 bar. At the bottom of a filter vent valve 1" (open) is mounted. On both sides are threaded connections with 3" AG.
Clamp made ??of nylon

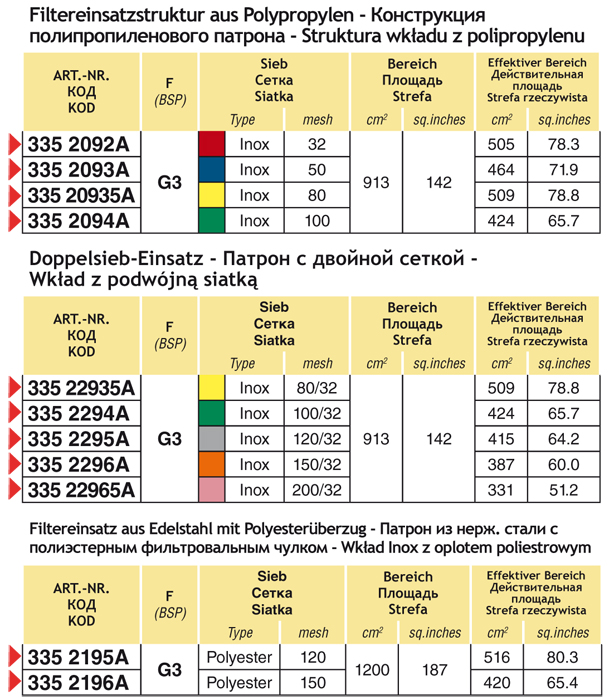

Also double net cartridge available
Stainless steel filter cartridge available with polyester coating in 120 and 150 mesh
